锐捷 Ruijie / Switches

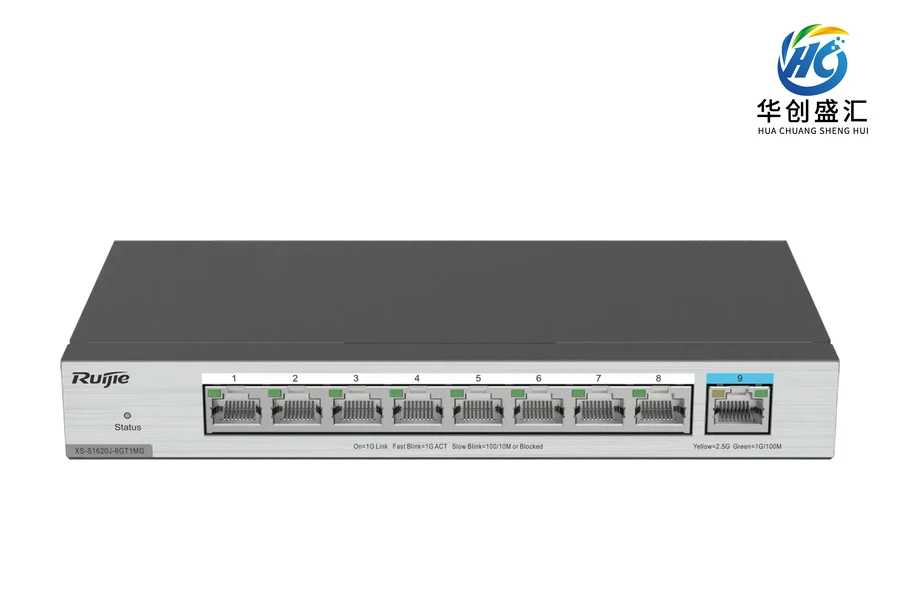

XS-S1620J-8GT1MG switch
Model：XS-S1620J-8GT1MG
Product family：新品 XS-S1620J-8GT1MG 8口千兆二层接入层交换机，2.5G上行口，XS-S1620J-8GT1MG 2.5G 上行端口 环境适应型紧凑设计 智能级网络管理 问答：0 查看详情
XS-S1620J-8GT1MG Ruijie switch for network equipment selection.
Product overview
XS-S1620J-8GT1MG is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 电口总数 | Original manufacturer specification: 1个2.5G BASE-T端口 + 8个1000BASE-T端口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 最大PoE供电功率 | / |
| Switching capacity | 21 Gbps |
| Forwarding rate | 15.62 Mpps |
| Technical specification: 缓存容量 | 4 Mbit |
| Technical specification: 闪存容量 | 8 MB |
| Technical specification: MAC地址表容量 | 8K |
| Technical specification: 最大VLAN数量 | 4K |
| Technical specification: 设备尺寸（宽×深×高） | 202\*108\*28 mm |
| Technical specification: 整机重量 | 0.54 kg |
| Technical specification: MTBF | 200K |
| Technical specification: 保修期限 | Original manufacturer specification: 3年Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: MTU | 9216 |
| Technical specification: Flow Control流量控制 | Supported: |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
