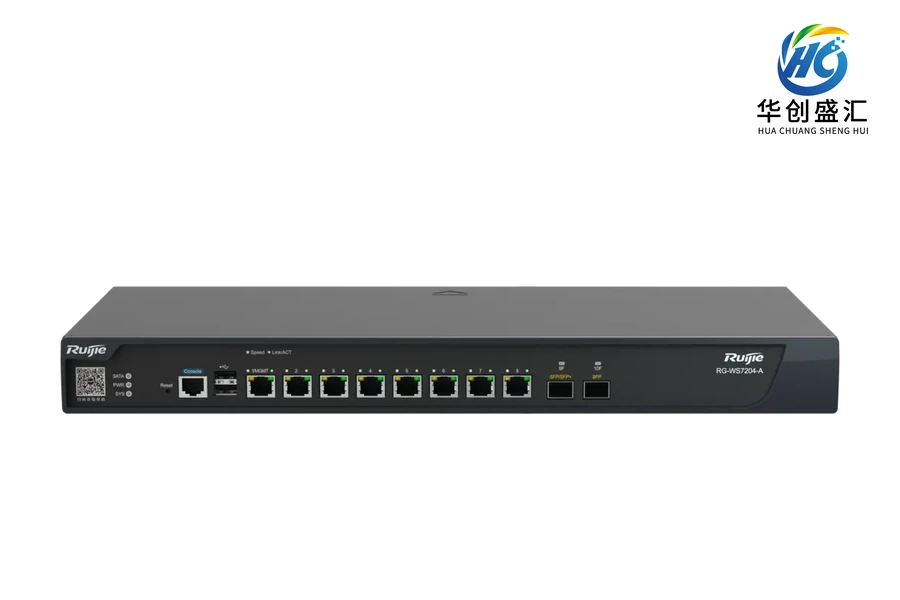

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Wireless
RG-WS7204-A wireless equipment
Model：RG-WS7204-A
Product family：RG-WS7204-A多业务无线AC
RG-WS7204-A Ruijie wireless equipment for network equipment selection.
Product overview
RG-WS7204-A is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×深×高） | 440mm×200mm×43.6mm |
| Technical specification: 机架尺寸 | 1U |
| Technical specification: 安装方式 | Original manufacturer specification: 桌面、机架Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化业务口 | Original manufacturer specification: 8 个支持 10/100/1000Base-T 自适应以太网接口 1 个 1G SFP 接口 1 个 10G SFP+ 接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理口 | Original manufacturer specification: 1 个 Console 接口 2 个 USB 接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 模块插槽 | Original manufacturer specification: 标配： 1 个 1TB 硬盘插槽 最大支持： 1 个 1TB 硬盘插槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 状态指示灯 | Original manufacturer specification: 1 个系统指示灯 1 个电源指示灯 1 个 SATA 指示灯 8 个电口 Link/ACT 指示灯 8 个电口状态指示灯 2 个光口指示灯Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 按键 | Original manufacturer specification: 1 个复位按键Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Maximum power | 25W |
| Technical specification: 输入电压 | 100V AC~240V AC ， 50Hz~60Hz |
| Temperature | Original manufacturer specification: 工作温度： -5 ° C ～ 45 ° C 存储温度： -40 ° C ～ 70 ° C 说明：在海拔 3000~5000 米范围内，海拔每升高 220 米，最高温度规格降低 1 ℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Humidity | Original manufacturer specification: 工作湿度： 10%RH ~90%RH （无凝结） 存储湿度： 5%RH ~95%RH （无凝结）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 安全法规 | Original manufacturer specification: 遵循 GB 4943.1Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 基础可管理 AP 数目 | 96 |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
