锐捷 Ruijie / Wireless

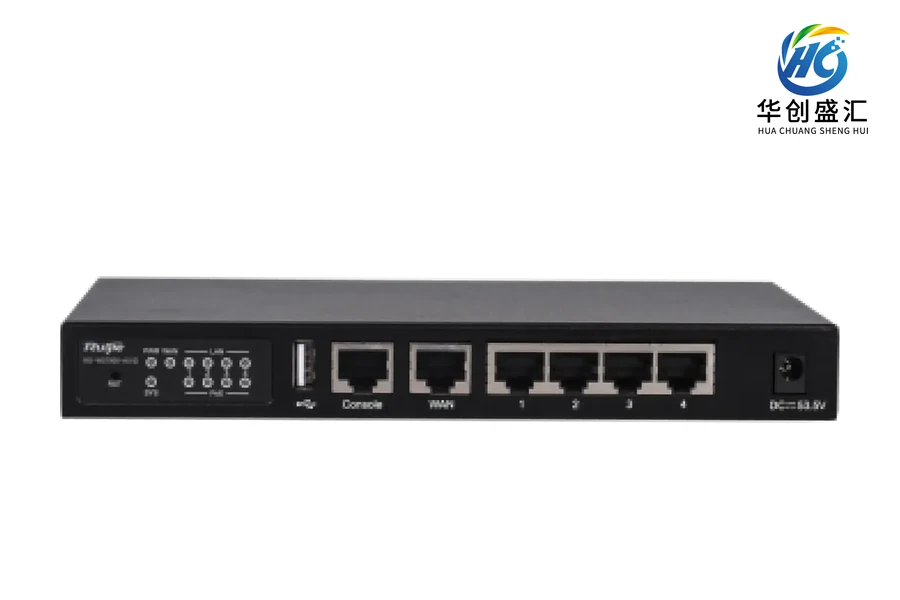

RG-WS7005-A(V2) wireless equipment
Model：RG-WS7005-A(V2)
Product family：RG-WS7005-A(V2)多业务无线AC
RG-WS7005-A(V2) Ruijie wireless equipment for network equipment selection.
Product overview
RG-WS7005-A(V2) is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×深×高） | 200mm×110mm×25mm |
| Technical specification: 机架尺寸 | 1U |
| Technical specification: 安装方式 | Original manufacturer specification: 桌面、机架Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化业务接口 | Original manufacturer specification: 1个10/100/1000Base-T自适应以太网接口 4个10/100/1000Base-T自适应以太网接口，支持标准802.3 AF/AT PoE供电（PoE供电总功率不大于56W） LAN/WAN 口切换：可支持最多 1 个 LAN 口切换为 WAN 口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个Console接口 1个USB口（USB不支持移动硬盘）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 状态指示灯 | Original manufacturer specification: 1个系统指示灯 1个电源指示灯 1个WAN口指示灯 4个LAN接口状态指示灯 4个LAN接口的PoE供电指示灯Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 按键 | Original manufacturer specification: 1个复位按键Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 对外供电 | Original manufacturer specification: 支持，IEEE 802.3af标准对外PoE供电Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机最大功耗 | 64.2W |
| Technical specification: 输入电压 | Original manufacturer specification: DC受电（输入电压电流：53.5V/1.2A）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 输出电压 | 53.5V |
| Temperature | Original manufacturer specification: 工作温度：-10°C～40°C 存储温度：-40°C～70°C 说明：在海拔3000~5000米范围内，海拔每升高220米，最高温度规格降低1℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Humidity | Original manufacturer specification: 工作湿度：5%RH ~90%RH（无凝结） 存储湿度：5%RH ~95%RH（无凝结）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 安全法规 | Original manufacturer specification: 遵循GB 4943.1Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
