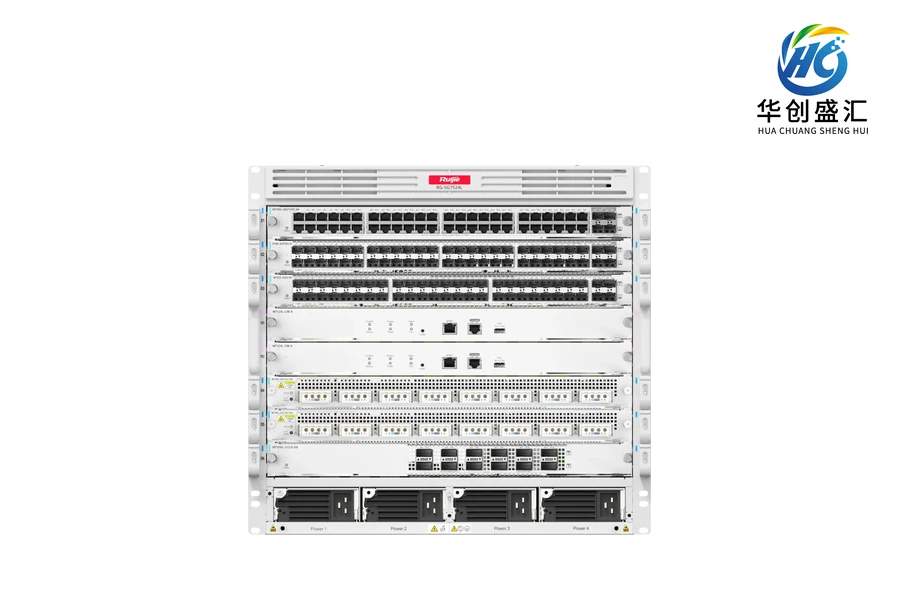

RG-SG7524L switch
Product family：新品 RG-SG7512L 一机一网主机，RG-SG7512L 紧凑型机框设计，4U高度，提升机柜空间利用率 多重安全防护策略，防止网络攻击，保证网络持续健壮性 支持VSU虚拟化，灵活组网性能强 硬件级多重保护，电信级高可靠，保持设备持续运行不掉线 内嵌一机一网方案管理软件，通过INC-EMB控制器实现极简运维 问答：0 查看详情
RG-SG7524L Ruijie switch for network equipment selection.
Product overview
RG-SG7524L is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Switching capacity | 106.4Tbps/460.8Tbps |
| Forwarding rate | 78600Mpps |
| Technical specification: 模块插槽 | Original manufacturer specification: 6个业务模块插槽 2个管理引擎插槽 2个交换网板（管理引擎集成）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸（宽x深x高） | Original manufacturer specification: 442.0mm x 465.0mm x 441.7mm (不含走线架)Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 机架尺寸 | 10U |
| Technical specification: 散热 | Original manufacturer specification: 前后风道散热设计，右侧开孔提供业务卡散热Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 开关电源 | 4 |
| Technical specification: 平均无故障时间（MTBF） | Original manufacturer specification: > 200,000小时Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 工作温度 | 0℃~45℃ |
| Technical specification: 存储温度 | -40℃~70℃ |
| Technical specification: 工作湿度 | Original manufacturer specification: 10%~90%RH（无冷凝）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 存储湿度 | 5%~95%RH |
| Technical specification: 工作海拔 | -500~5000M |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
