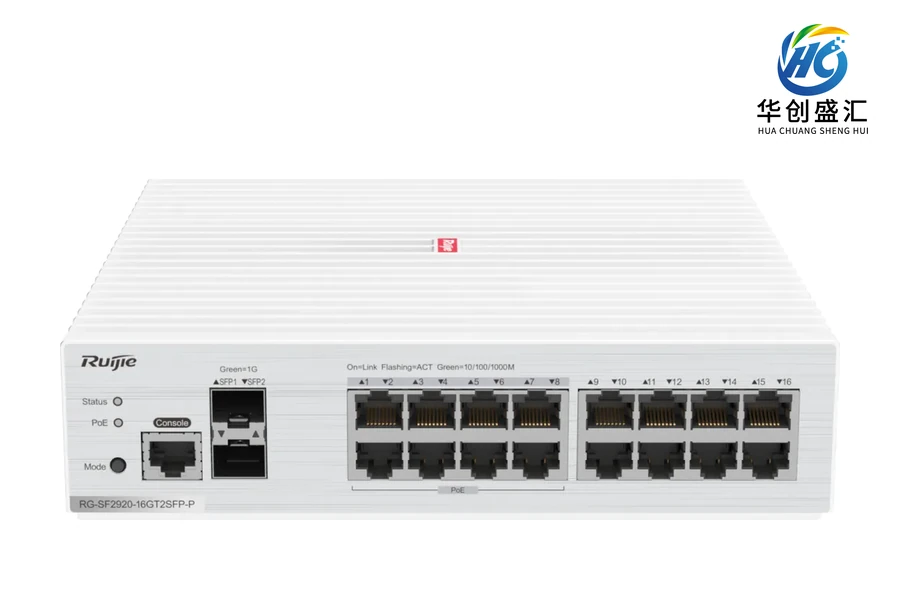

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-SF2920-16GT2SFP-P switch
Model：RG-SF2920-16GT2SFP-P
Product family：RG-SF2920系列极简光交换机
RG-SF2920-16GT2SFP-P Ruijie switch for network equipment selection.
Product overview
RG-SF2920-16GT2SFP-P is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 16个10/100/1000M自适应电口 2个1G SFP光口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 672Gbps/6.72Tbps |
| Forwarding rate | 126Mpps |
| Power supply | Original manufacturer specification: 固化单交流电源Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 电源输入 | Original manufacturer specification: 交流（AC）输入： 额定电压：200V~240V 最大电压：180V~264V 频率：50Hz~60Hz 高压直流（HVDC）输入：支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机功耗 | Original manufacturer specification: 不带PoE负载：<25W PoE满载：<150WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE接口 | Original manufacturer specification: 1~8号电口支持PoE/PoE+供电Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE标准 | Original manufacturer specification: PoE供电设计支持IEEE 802.3af（15.4W）、IEEE 802.3at（30W）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE输出功率 | Original manufacturer specification: 整机最大125WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE功能 | Original manufacturer specification: 支持自动、节能供电管理模式 支持热启动不间断供电 支持端口优先级 支持对PoE端口定时上下电Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸 （宽x深x高） | 210mm x 235mm x 55mm |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
