锐捷 Ruijie / Switches

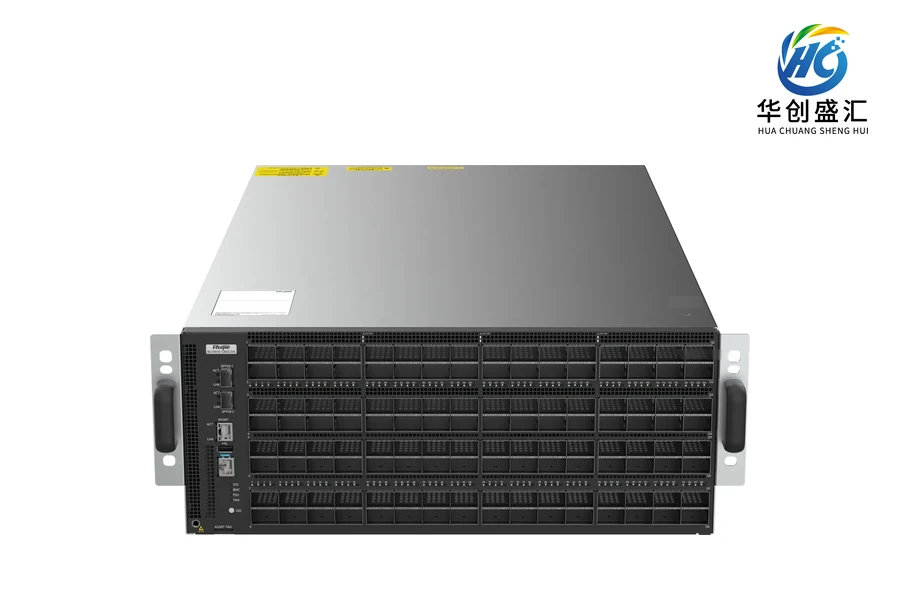

RG-S9510-128OC2VS switch
Model：RG-S9510-128OC2VS
Product family：RG-S9510系列
RG-S9510-128OC2VS Ruijie switch for network equipment selection.
Product overview
RG-S9510-128OC2VS is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽x深x高） | 442mm x 760mm x 175mm |
| Technical specification: 机架尺寸 | 4U |
| Technical specification: 产品重量 | Original manufacturer specification: 43.5kg（空机箱、4个电源和8个风扇）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 204.8Tbps |
| Forwarding rate | 37000Mpps |
| Technical specification: 业务接口 | Original manufacturer specification: 128个800G OSFP接口 2个25G SFP28接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 管理接口 | Original manufacturer specification: 1个RJ45的Console接口 1个RJ45的MGMT接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: USB接口 | Original manufacturer specification: 1个USB 2.0接口（Type A连接器）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 模块插槽 | Original manufacturer specification: 4个电源模块插槽 8个风扇模块插槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机功耗 | Original manufacturer specification: 最大功耗：5902W 典型功耗：4375W 静态功耗：1260WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 电源输入 | Original manufacturer specification: PA3200I-F（AC输入）： 额定输入电压：100V~120V AC，200V~240V AC，50/60Hz 最大输入电压：90V~132V AC，180V~264V AC，47Hz~63Hz 额定输入电流：14A（100V~120V AC） 16A（200V~240V AC） 电源接口类型：C20 PA3200I-F（HVDC输入）： 额定输入电压：240V DC 最大输入电压：180~320V DC 额定输入电流：16A 电源接口类型：C20Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Temperature | Original manufacturer specification: 工作环境温度：0°C~40°C(海拔≤1800米) 存储环境温度：-40°C~70°C 说明：在海拔1800~5000米范围内，海拔每升高200米，最高温度规格降低1℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Humidity | Original manufacturer specification: 工作环境湿度：10%RH~90% RH（无凝结） 存储环境湿度：5%RH~95%RH（无凝结）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 海拔 | Original manufacturer specification: 工作海拔： ≤5000m 存储海拔： ≤5000mSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
