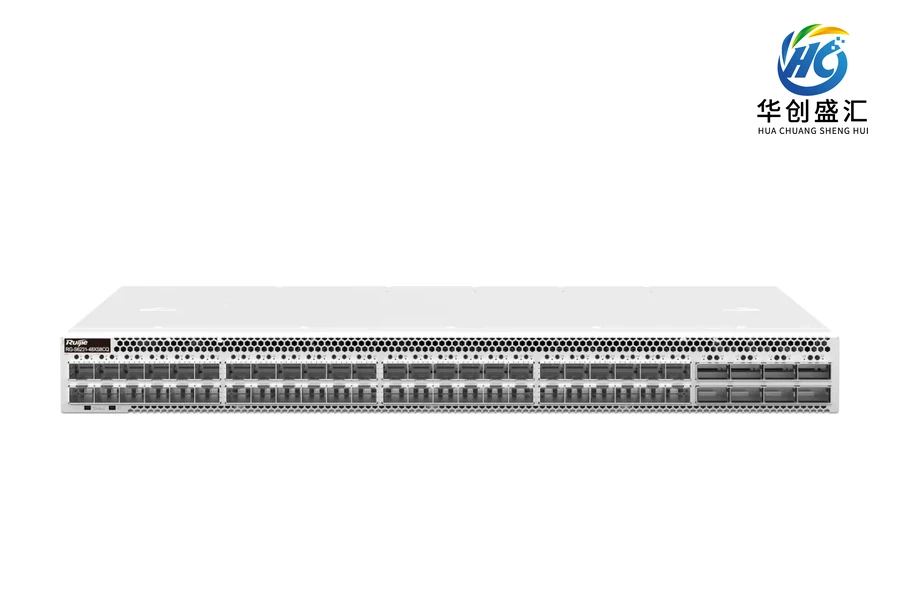

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S6231-48XS8CQ switch
Model：RG-S6231-48XS8CQ
Product family：RG-S6200系列
RG-S6231-48XS8CQ Ruijie switch for network equipment selection.
Product overview
RG-S6231-48XS8CQ is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽x深x高） | 442mm x 387mm x 44mm |
| Technical specification: 机架尺寸 | 1U |
| Technical specification: 产品重量 | Original manufacturer specification: 7.4kg（空机箱） 10kg（空机箱、2个电源和4个风扇）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 4.8Tbps/96Tbps |
| Forwarding rate | 2000Mpps |
| Technical specification: 业务接口 | Original manufacturer specification: 48个1G/10G SFP+接口 8个40G/100G QSFP28接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 管理接口 | Original manufacturer specification: 1个RJ45的Console接口 1个RJ45的MGMT接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: USB接口 | Original manufacturer specification: 1个USB 2.0接口（Type A连接器）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 模块插槽 | Original manufacturer specification: 2个电源模块槽位 4个风扇模块槽位Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机功耗 | Original manufacturer specification: 最大功耗：268W 典型功耗：136W 静态功耗：80.9WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Temperature | Original manufacturer specification: 工作环境温度：0°C~45°C 存储环境温度：-40°C~70°C 说明：在海拔1800~5000米范围内，海拔每升高200米，最高温度规格降低1℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Humidity | Original manufacturer specification: 工作环境湿度：10%RH~90% RH（无凝结） 存储环境湿度：5%RH~95%RH（无凝结）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 海拔 | Original manufacturer specification: 工作海拔： ≤5000m 存储海拔： ≤5000mSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 散热 | Original manufacturer specification: 风冷散热，前后风道（端口侧进风）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
