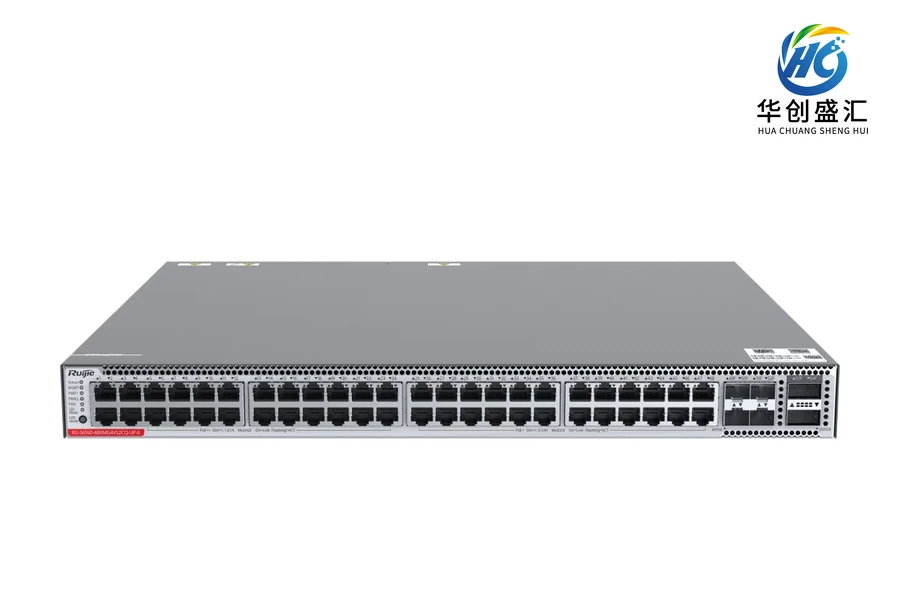

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S6160-48XMG4VS2CQ-UP-X switch
Model：RG-S6160-48XMG4VS2CQ-UP-X
Product family：RG-S6160-X系列新一代高性能万兆交换机
RG-S6160-48XMG4VS2CQ-UP-X Ruijie switch for network equipment selection.
Product overview
RG-S6160-48XMG4VS2CQ-UP-X is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 48个100M/1G/2.5G/5G /10G自适应电口，4个10G / 25G SFP28光口，2个40G/100G QSFP+光口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 模块插槽 | Original manufacturer specification: 3个模块化风扇插槽 2个模块化电源插槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个MGMT端口、1个Console端口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: USB接口 | Original manufacturer specification: 1个USB2.0接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 2.56/25.6Tbps |
| Forwarding rate | 1470Mpps |
| Technical specification: PoE功能 | Original manufacturer specification: 1~48号端口均支持PoE/PoE+供电，同时1~24号端口支持高功率PoE++供电（单端口最大输出功率90W）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机最大功耗 | Original manufacturer specification: 不带PoE负载功耗：280W PoE满载功耗：1480WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸（宽×深×高） | 442mm x 420mm x 44mm |
| Fans | Original manufacturer specification: 支持冗余，支持热拔插，支持风扇调速及风扇故障告警功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 温度告警 | Original manufacturer specification: 支持温度告警功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Temperature | Original manufacturer specification: 工作温度：0℃~45℃ 存储温度：-40℃~70℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Humidity | Original manufacturer specification: 工作湿度：10%～90%（无凝露） 存储湿度：5%~95%（无凝露）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
