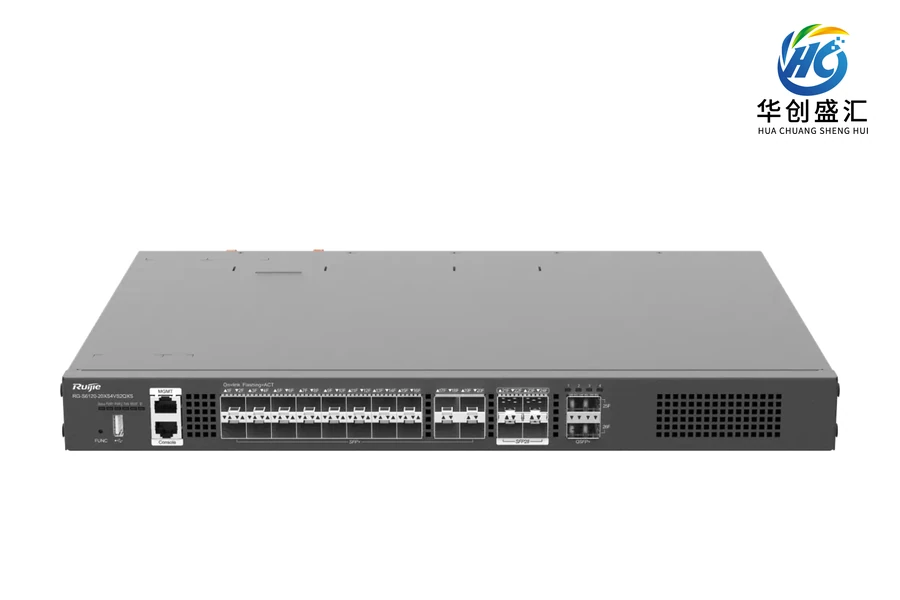

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S6120-20XS4VS2QXS switch
Model：RG-S6120-20XS4VS2QXS
Product family：RG-S6120系列融合万兆交换机
RG-S6120-20XS4VS2QXS Ruijie switch for network equipment selection.
Product overview
RG-S6120-20XS4VS2QXS is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 20个1G/2.5G / 10G SFP+光口； 4个10G / 25G SFP28光口；2个40G QSFP+光口； 整机最大可支持32个10G端口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 模块插槽 | Original manufacturer specification: 2个模块化电源插槽 2个模块化风扇插槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个MGMT端口 1个Console 端口 1个USB端口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 2.56Tbps/25.6Tbps |
| Forwarding rate | 720Mpps/1260Mpps |
| Technical specification: 典型功耗 | Original manufacturer specification: 85W(满负荷)Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: POE接口 | Original manufacturer specification: 不支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 风扇类型 | Original manufacturer specification: 支持可拔插双模块化风扇，前后风道 支持风扇调速及风扇故障告警功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸（宽×深×高） | 440.0mm x 330.0mm x 43.6mm |
| Technical specification: 产品重量 | Original manufacturer specification: 4.6kg（含两个风扇，不含开关电源）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 电源接口防雷 | 6KV |
| Technical specification: 温度监控 | Original manufacturer specification: 支持温度告警Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 工作温度 | 0℃~50℃ |
| Technical specification: 存储温度 | -40℃~70℃ |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
