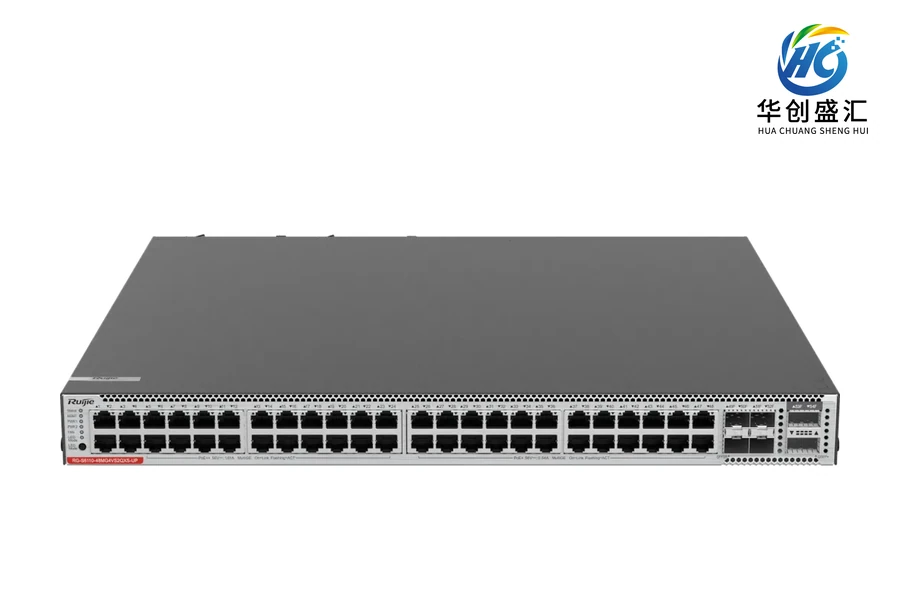

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S6110-24MG4VS-UP switch
Model：RG-S6110-24MG4VS-UP
Product family：RG-S6100多速率系列交换机
RG-S6110-24MG4VS-UP Ruijie switch for network equipment selection.
Product overview
RG-S6110-24MG4VS-UP is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 24个100M / 1000M / 2.5G/ 5G自适应电口，4个10G / 25G SFP28光口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 模块插槽 | Original manufacturer specification: 内置电源 2个固化风扇Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个MGMT端口 1个Console 端口 1个USB端口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 2.56Tbps/25.6Tbps |
| Forwarding rate | 360Mpps/740Mpps |
| Technical specification: 典型功耗 | Original manufacturer specification: 不带POE负载功耗<110W(满负荷) PoE满载功耗<370W(满负荷)Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 电源模块型号 | Original manufacturer specification: 内置电源Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 额定输入电压 | Original manufacturer specification: 内置电源 交流（AC）输入 额定电压范围：100-240V~ 最大电压范围：90-264V~ 频率：50/60Hz 每路输入额定电流：6ASome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: POE接口 | Original manufacturer specification: 1~24号端口均支持PoE/PoE+供电，同时支持高功率HPoE供电（HPoE单端口最大输出功率90W）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 风扇类型 | Original manufacturer specification: 固化两个风扇 支持风扇调速及风扇故障告警功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸（宽×深×高） | 442.0mm x 220.0mm x 43.6mm |
| Technical specification: 产品重量 | 7.3kg |
| Technical specification: 电源接口防雷 | 6KV |
| Technical specification: 温度监控 | Original manufacturer specification: 支持温度告警Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
