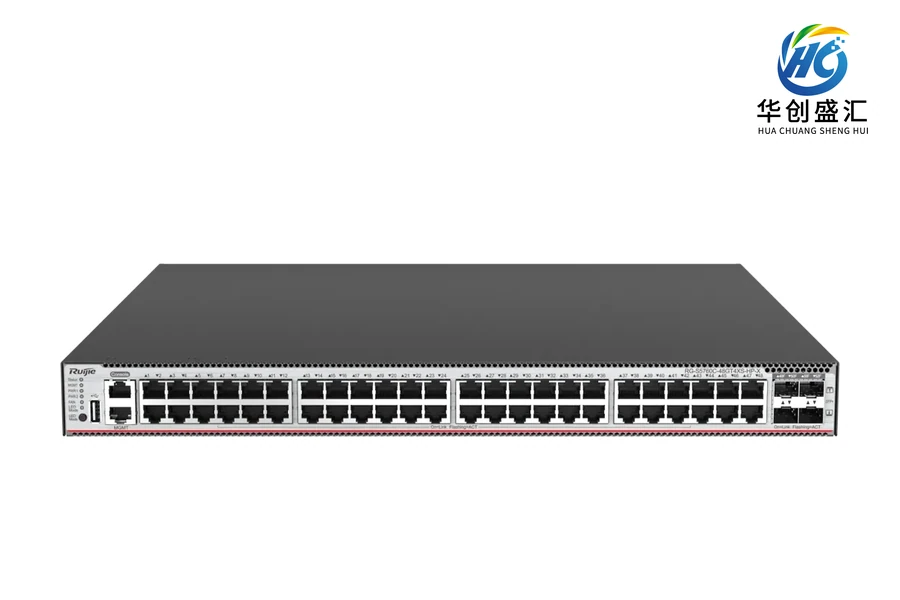

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S5760C-48GT4XS-HP-X switch
Model：RG-S5760C-48GT4XS-HP-X
Product family：RG-S5760-X系列新一代融合千兆交换机
RG-S5760C-48GT4XS-HP-X Ruijie switch for network equipment selection.
Product overview
RG-S5760C-48GT4XS-HP-X is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Fixed ports | Original manufacturer specification: 48个10/100/1000M自适应电口，4个1G/10G SFP+光口，2个模块化电源插槽；支持PoE/PoE+Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 管理口 | Original manufacturer specification: 1个MGMT端口、1个Console端口、1个USB端口，符合USB2.0的标准Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 扩展槽 | Original manufacturer specification: 1 个扩展插槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 2.56Tbps/25.6Tbps |
| Forwarding rate | 660Mpps/930Mpps |
| Technical specification: 功耗(满负荷时)： | Original manufacturer specification: 整机功耗 <120W 满负载功耗 < 1600WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸（宽×深×高） | 442.0mm x 420.0mm x 43.6mm |
| Power supply | Original manufacturer specification: 非POE型号交流（AC）输入 额定电压范围：100V-240V 最大电压范围：90V~264V 频率：50/60Hz 高压直流(HVDC)输入 额定电压范围：240V 最大电压范围：192~288V PoE型号交流（AC）输入 额定电压范围：200V-240V 最大电压范围：176V~264V 频率：50/60Hz 低压直流（LVDC）输入 额定电压范围：-48~-60VDC 最大输入电压：-36~-75VDCSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Fans | Original manufacturer specification: 模块化 2 风扇 支持风扇调速及风扇故障告警功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 散热 | Original manufacturer specification: 前后风道Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 温度告警 | Original manufacturer specification: 支持温度告警功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Temperature | Original manufacturer specification: 工作温度：0℃~45℃ 存储温度：-40℃~70℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Humidity | Original manufacturer specification: 工作湿度：10%~90%（无凝露） 存储湿度：5%~95%Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 通信接口防雷 | Original manufacturer specification: 业务接口：10KVSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
