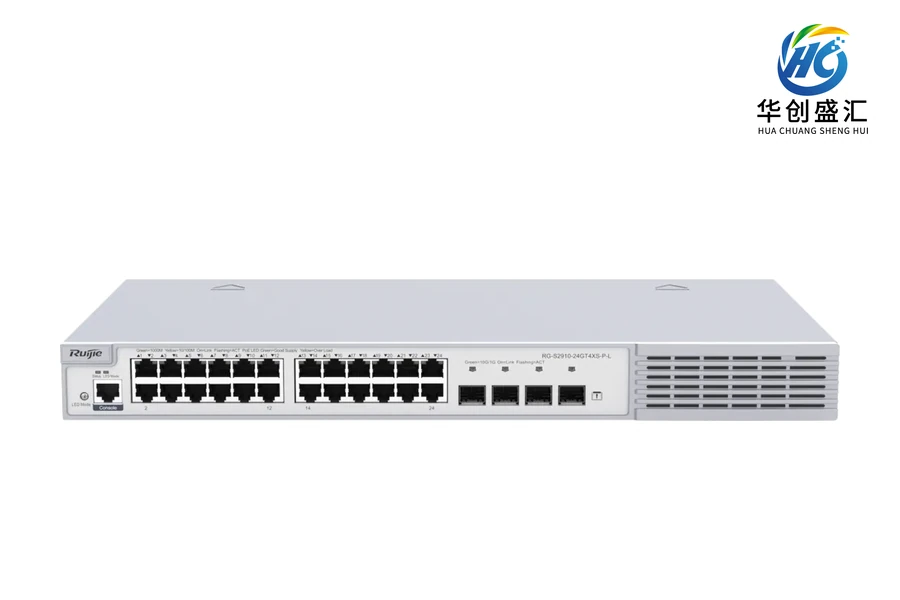

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-S2910-24GT4XS-P-L switch
Model：RG-S2910-24GT4XS-P-L
Product family：RG-S2910-L系列千兆交换机
RG-S2910-24GT4XS-P-L Ruijie switch for network equipment selection.
Product overview
RG-S2910-24GT4XS-P-L is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品重量 | 5.5 kg |
| Technical specification: 机架尺寸 | 1 RU |
| Technical specification: 安装方式 | Original manufacturer specification: 桌面/壁挂/机架/机柜Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化业务接口 | Original manufacturer specification: 24个10/100/1000Base-T自适应以太网接口 4个1GE/10GE SFP+接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个RJ45 Console接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Power supply | Original manufacturer specification: 1个固化电源Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机最大功耗 | Original manufacturer specification: 40W（不带PoE负载） 460W（PoE满载）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 额定输入电压 | 100V AC~240V AC，50/60Hz 192V DC~290V DC |
| Technical specification: 最大输入电压 | 90V AC~264V AC，50/60Hz |
| Technical specification: 额定输入电流 | 6.8A |
| Technical specification: PoE接口 | Original manufacturer specification: 接口1~24支持PoE/PoE+ (IEEE802.3af/at)供电Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE供电线对 | Original manufacturer specification: Mode A（1-2,3-6线对）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE输出功率 | Original manufacturer specification: 每接口最大供电30W 整机最大供电370W 说明：实际的PoE带载数量，请根据PoE输出功率及PoE设备实际功率计算。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 线缆热插拔 | Original manufacturer specification: Console口、业务接口与电源接口支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
