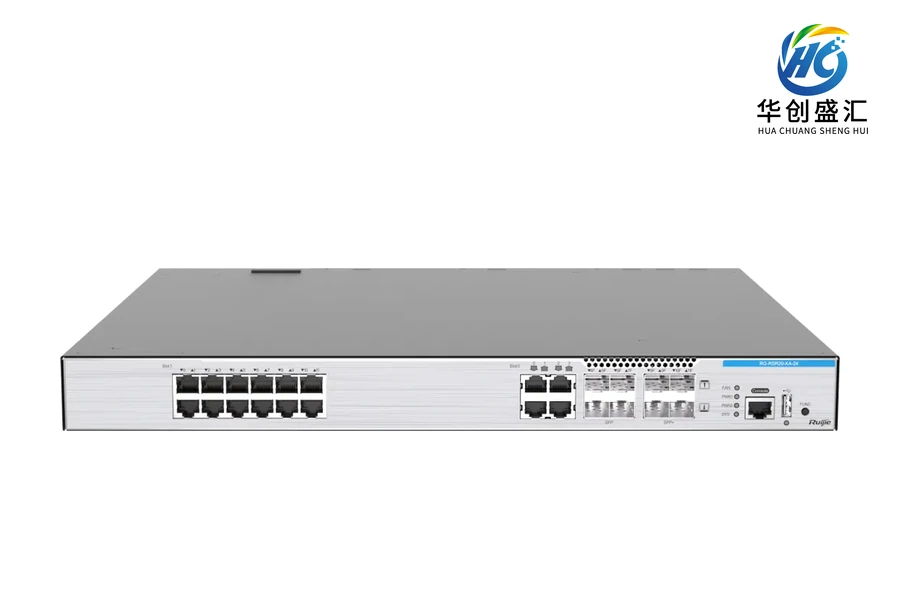

Official manufacturer family image; appearance may vary by model.
RG-RSR20-XA-24 router
Product family：RG-RSR20-XA-54 54口多业务盒式接入路由器，6个WAN口，48个LAN口，RG-RSR20-XA-54 丰富的端口类型和数量，多业务融合，一机多用，简化网络部署 支持IPsec VPN+国密算法，保证传输数据的安全可信，业务安全和政策需求双保障 软件硬件双冗余，系统可靠性高，保持业务持续不中断 完善的HQoS策略，实现精细化的流量管理，提升关键用户用网体验 路由、交换、安全一体化 IPsec VPN 国密加密传输 硬件级boot双冗余 问答：12 查看详情
RG-RSR20-XA-24 Ruijie router for network equipment selection.
Product overview
RG-RSR20-XA-24 is Ruijie router. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 转发性能 | 9Mpps~40Mpps |
| Switching capacity | 120Gbps |
| Technical specification: SD-WAN转发性能(IMIX) | 700Mbps~1200Mbps |
| Memory | 4GB DDR4 |
| Technical specification: Flash | 8GB eMMC |
| Technical specification: 固化WAN口 | Original manufacturer specification: 4个万兆光口 4个千兆光口 4个千兆电口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化LAN口 （LAN/WAN可切换） | Original manufacturer specification: 12个千兆电口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 模块插槽 | Original manufacturer specification: 4个HSIC槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: USB口 | 1 USB 2.0 ports |
| Technical specification: 管理口 | 1 Console ports |
| Technical specification: 产品尺寸 （宽×高×深）mm | 440mm×44mm×420mm（1U） |
| Weight | Original manufacturer specification: 小于7.8KG（满配置，不含包材）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Power supply | Original manufacturer specification: 交流：100V~240V AC，50Hz~60Hz，最大功率150W，采用10A电源线 直流：-36VDC～-75VDC，最大功率150W，采用10A电源线Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Maximum power | Original manufacturer specification: 小于150WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
