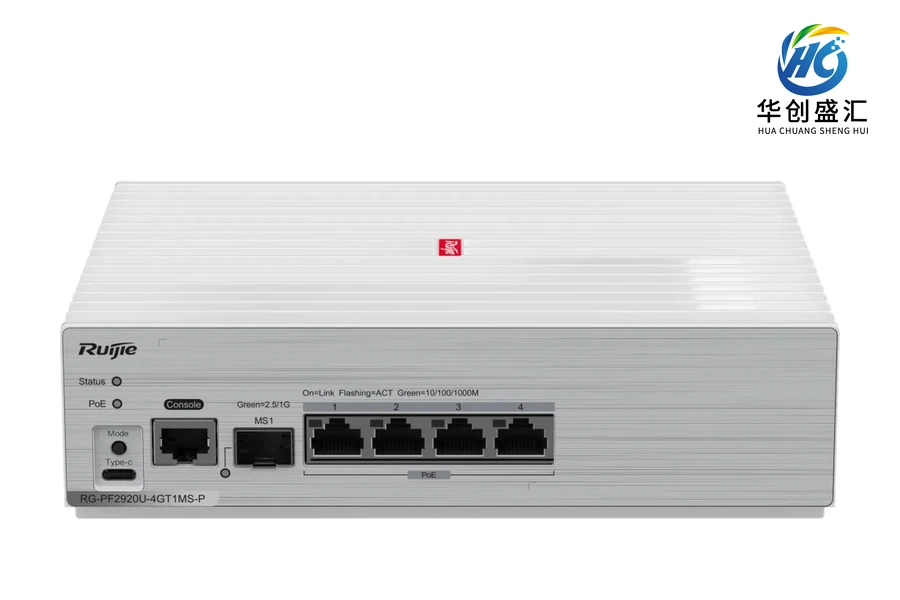

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-PF2920U-4GT1MS-P switch
Model：RG-PF2920U-4GT1MS-P
Product family：RG-PF2920系列极简光入室交换机
RG-PF2920U-4GT1MS-P Ruijie switch for network equipment selection.
Product overview
RG-PF2920U-4GT1MS-P is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 4个10/100/1000M自适应电口 1个1G/2.5G SFP光口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个Console接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 432Gbps/4.32Tbps |
| Forwarding rate | 78Mpps/126Mpps |
| Technical specification: SFP+ 光接口 | Original manufacturer specification: 支持2500Base-X和1000Base-XSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Power supply | Original manufacturer specification: 通过时光主机引入光电混合缆供电 最大电压输入范围 42VDC ~ 57VDC 额定电压范围：44VDC~ 56VDC 额定电流：1.3ASome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 输入对地漏电流参数 | ≤3.5mA |
| Technical specification: EEE 功能 | Supported: |
| Technical specification: PoE接口 | Original manufacturer specification: 1~4以太网电接口支持PoE功能Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE 输出功率 | Original manufacturer specification: 每接口最大供电30W 整机最大供电60W 说明: 实际的PoE带载数量，请根据PoE输出功率及PoE受电设备实际功耗计算。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机功耗 | Original manufacturer specification: 整机功耗（不带PoE负载）≤15W 整机功耗（PoE满载）≤75WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 工作温度 | Original manufacturer specification: 机架等开放场景：0ºC 到45ºC（0~1800m海拔） 桌面和弱电箱场景：0ºC 到40ºC（0~1800m海拔） 说明：海拔1800~5000m：海拔每升高220m，最高温度规格降低1℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 存储温度 | Original manufacturer specification: -40ºC 到 70ºCSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 工作湿度 | Original manufacturer specification: 10% 到 90% RHSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
