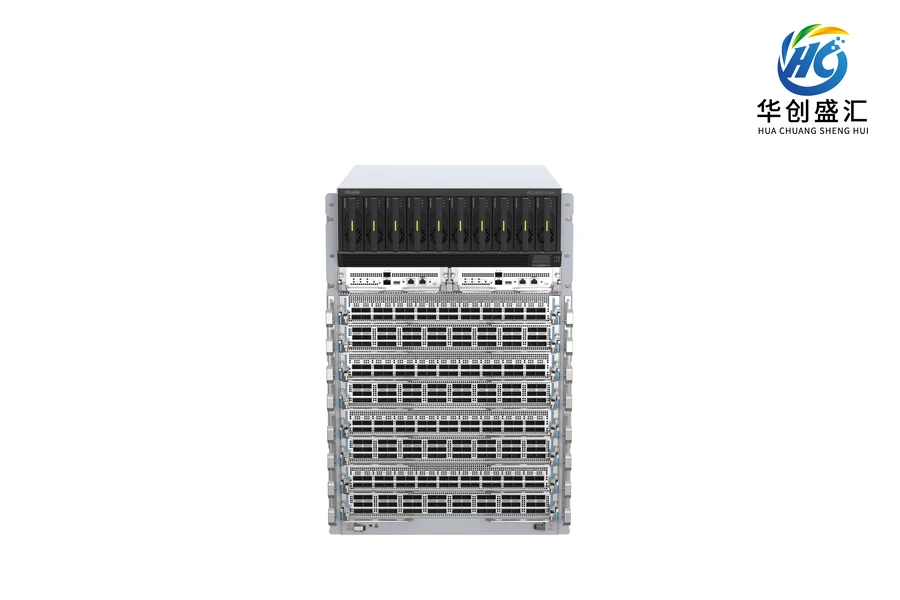

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-N18010-XH switch
Model：RG-N18010-XH
Product family：RG-N18000-XH系列
RG-N18010-XH Ruijie switch for network equipment selection.
Product overview
RG-N18010-XH is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽x深x高） | Original manufacturer specification: 442mm x 896mm x 708mm（不含走线架） 442mm x 935mm x 708mm（含走线架）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 机架尺寸 | 16U |
| Technical specification: 产品重量 | Original manufacturer specification: 96.4kg（支持M18000XH-CM管理板的机箱） 99kg（支持M18000XH-CM II管理板的机箱）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 1906T/5718T |
| Forwarding rate | 460,800Mpps |
| Technical specification: 模块插槽 | Original manufacturer specification: 2个主控引擎插槽 8个业务接口板插槽 8个交换网板插槽 10个电源模块插槽 3个风扇模块插槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机功耗 | Original manufacturer specification: 最大功耗（配套M18010XH-FAN风扇）：18760W 最大功耗（配套M18010XH-FAN III风扇）：9000WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Temperature | Original manufacturer specification: 工作环境温度：0°C~40°C 存储环境温度：-40°C~70°C 说明：在海拔1800~5000米范围内，海拔每升高200米，最高温度规格降低1℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Humidity | Original manufacturer specification: 工作环境湿度：10%RH~90% RH（无凝结）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 海拔 | Original manufacturer specification: 工作海拔： ≤5000m 存储海拔： ≤5000mSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 散热 | Original manufacturer specification: 风冷散热，前后风道（端口侧进风）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 流量分析 | Original manufacturer specification: 支持sFlow 支持IPFIX 支持丢包检测功能，支持INT 或同等流量可视化功能， 支持 GRPC功能，支持Dial-out和Dial-inSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: L2特性 | Original manufacturer specification: 支持Jumbo Frame 支持802.3ad(静态链路聚合、LACP、跨板链路聚合、跨设备链路聚合) 支持802.1Q 支持STP、RSTP、MSTP 支持GVRP 支持QinQ 支持LLDP 支持静态MAC地址，支持过滤地址，支持MAC地址数量限制Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: IPv4特性 | Original manufacturer specification: 支持静态路由、BGP4、OSPF、IS-IS、RIP 支持VRRP 支持等价路由 支持策略路由 支持IP报文分片和重组 支持手工隧道、支持GRE隧道等Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
