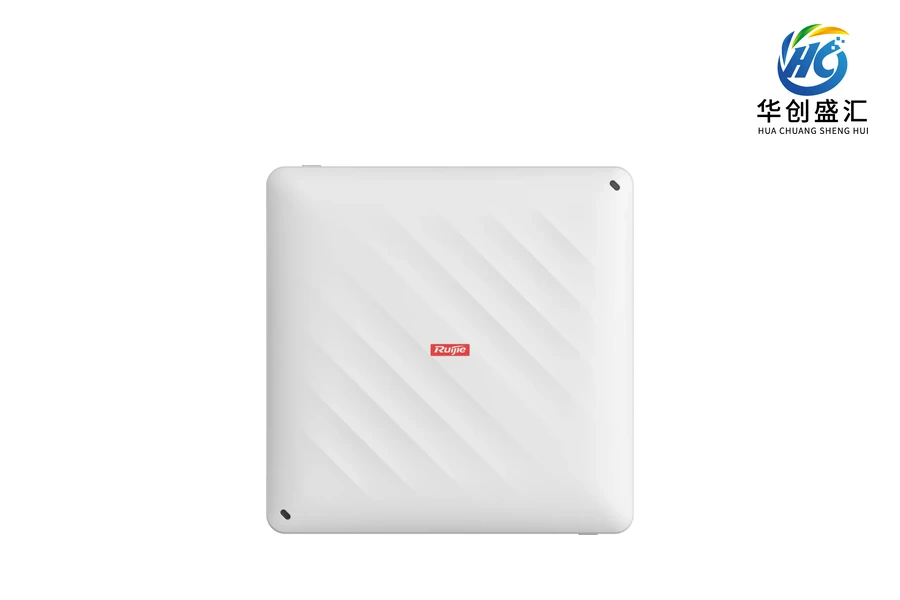

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Wireless
RG-MAP920-SF-MXT wireless equipment
Model：RG-MAP920-SF-MXT
Product family：RG-MAP920-SF-MXT超融合OAP
RG-MAP920-SF-MXT Ruijie wireless equipment for network equipment selection.
Product overview
RG-MAP920-SF-MXT is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×高×深） | 190mm×190mm×58mm |
| Technical specification: 运输尺寸（宽×高×深） | 495mm×380mm×255mm |
| Technical specification: 产品重量 | 0.83kg |
| Technical specification: 运输重量 | 9.25kg |
| Technical specification: 安装方式 | Original manufacturer specification: 壁挂、吸顶Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 外观颜色 | Original manufacturer specification: 雅白Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 射频设计 | Original manufacturer specification: 双射频设计，整机支持4条空间流 Radio1：2.4GHz，2条流，2×2，MIMO Radio2：5GHz，2条流，2×2，MIMOSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating bands | Original manufacturer specification: Radio1：802.11b/g/n/ax/be，2.400GHz~2.4835GHz Radio2：802.11a/n/ac/ax/be，5.150GHz～5.350GHz，5.470GHz ~ 5.725GHz，5.725 GHz ~ 5.850GHz 注意：工作频段根据不同国家配置有所变化Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 传输速率 | Original manufacturer specification: 整机最大接入速率：2.4GHz+5GHz，3.570Gbps Radio1：2.4GHz，0.688Gbps Radio2：5GHz，2.882GbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 数据包聚合 | A-MPDU（Tx/Rx），A-MSDU（Tx/Rx） |
| Technical specification: 天线类型 | Original manufacturer specification: 内置智能天线Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线增益 | Original manufacturer specification: 2.4GHz峰值增益5.4dBi 5GHz峰值增益6.3dBiSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 最大发射功率 | Original manufacturer specification: 2.4 GHz频段：23 dBm 5 GHz频段：23 dBm 注意：实际发射功率遵照不同国家和地区法规而有所不同。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 功率调整步长 | 1dBm |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
