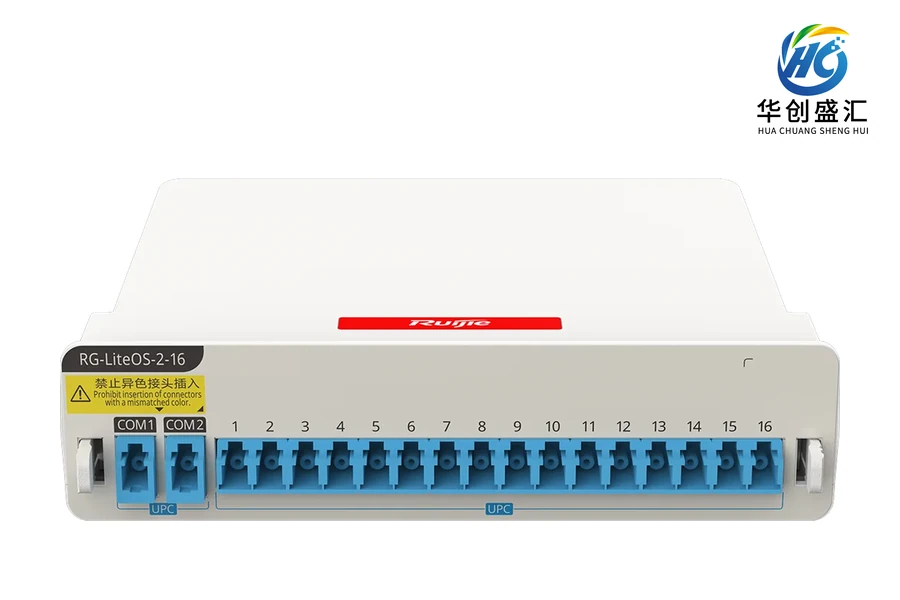

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-LiteOS-2-16 switch
Model：RG-LiteOS-2-16
Product family：RG-LiteOS系列融合汇聚
RG-LiteOS-2-16 Ruijie switch for network equipment selection.
Product overview
RG-LiteOS-2-16 is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品描述 | Original manufacturer specification: 2分16均分型融合汇聚设备，LC/UPC接口，支持无源全光网络设计Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 支持波长 | 1260nm~1650nm |
| Technical specification: 分光比例 | Original manufacturer specification: 等比例分光Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 插入损耗 | <14.2dB |
| Technical specification: 回波损耗 | Original manufacturer specification: ＞50dB（COM Block：COM UPC端口接入光路）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 偏振损耗 | <0.3dB |
| Technical specification: 方向性 | Original manufacturer specification: ≥55dB（COM Block：COM UPC端口接入光路）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 连接头类型 | LC/UPC |
| Technical specification: 工作环境温度 | -40°C~+85°C |
| Technical specification: 存储环境温度 | -40°C~+85°C |
| Technical specification: 工作环境湿度 | Original manufacturer specification: 5%~95% RH，无冷凝Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 存储环境湿度 | Original manufacturer specification: 5%~95% RH，无冷凝Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 输入光功率 | ≤300mW |
| Technical specification: 产品重量 | Original manufacturer specification: <0.20 kg（不含包装）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
