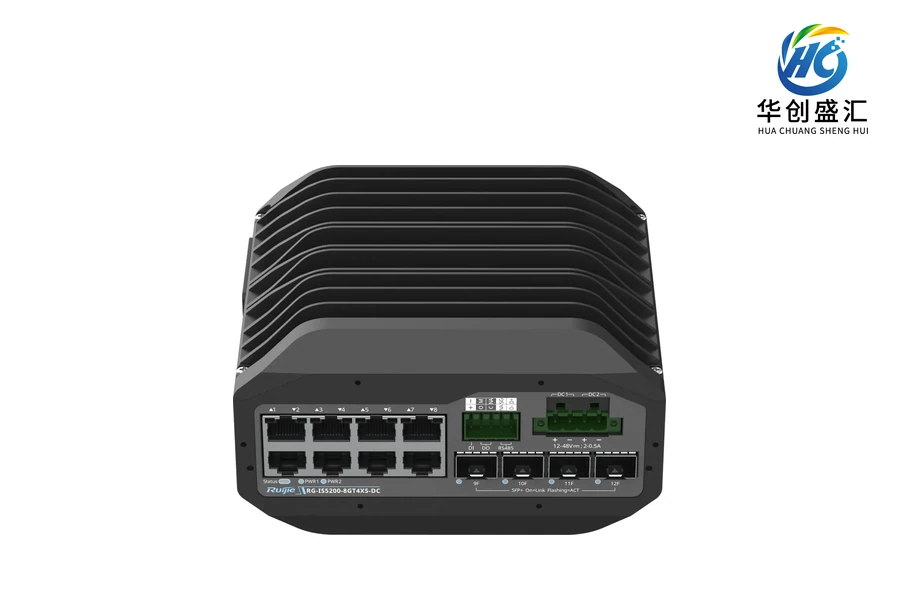

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-IS5200-8GT4XS-DC switch
Model：RG-IS5200-8GT4XS-DC
Product family：RG-IS5200沙海系列工业以太网交换机
RG-IS5200-8GT4XS-DC Ruijie switch for network equipment selection.
Product overview
RG-IS5200-8GT4XS-DC is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 固化业务接口 | Original manufacturer specification: 8个10/100/1000BASE-T自适应以太网接口，4个1GE/10GE SFP+接口（授权后支持10GE）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个RJ45的Console接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: RS485接口 | Original manufacturer specification: 1个RS485接口，支持Modbus协议Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: DIDO | Original manufacturer specification: 1路DI，1路DOSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: USB接口 | Original manufacturer specification: 1个USB 2.0端口，支持USB配置引导，支持通过U盘保存日志、导出配置，升级安装包Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Switching capacity | 520Gbps/5.2Tbps |
| Forwarding rate | 102Mpps |
| Technical specification: 产品尺寸（宽×深×高） | 150mm×133mm×86mm |
| Technical specification: 产品重量 | 1.5kg |
| Technical specification: 安装方式 | Original manufacturer specification: 桌面安装、DIN导轨安装、壁挂安装Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 电源接口 | Original manufacturer specification: 凤凰端子Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE供电标准 | Original manufacturer specification: 不支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: PoE输出功率 | Original manufacturer specification: 不支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 电源输入 | Original manufacturer specification: 双路备份冗余直流（DC1/DC2）输入： 额定输入电压：12V~48V DC 最大输入电压：9.6V~60V DC 额定输入电流：2A~0.5ASome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
