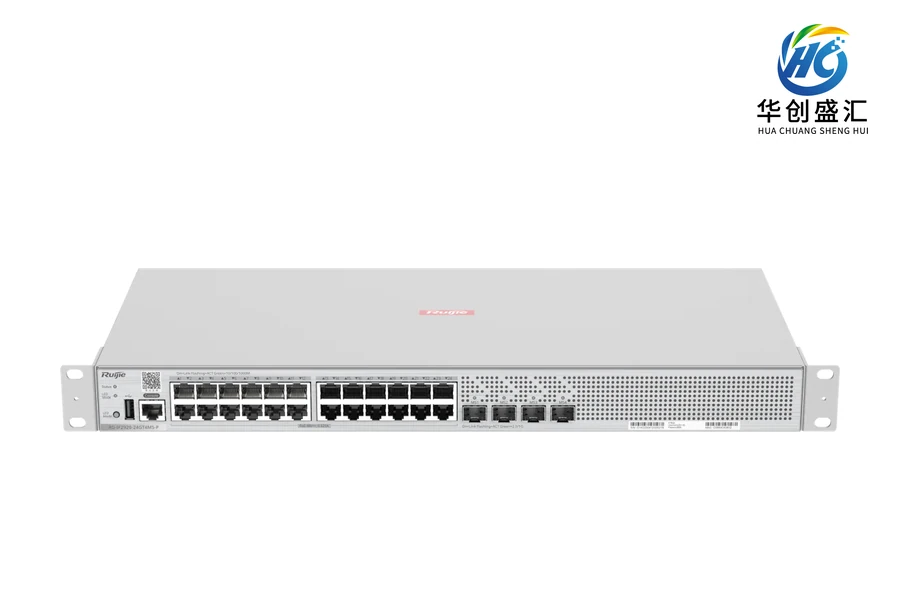

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Switches
RG-IF2920-24GT4MS-P switch
Model：RG-IF2920-24GT4MS-P
Product family：RG-IF2920系列极简光入室交换机
RG-IF2920-24GT4MS-P Ruijie switch for network equipment selection.
Product overview
RG-IF2920-24GT4MS-P is Ruijie switch. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Switching capacity | 672Gbps/6.72Tbps |
| Forwarding rate | 179Mpps |
| Technical specification: 固化业务接口 | Original manufacturer specification: 24个10/100/1000Base-T自适应以太网接口 4个1GE/2.5GE SFP接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1个RJ45 Console接口，1个USB接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 线缆热插拔 | Original manufacturer specification: 业务接口与电源接口支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 产品尺寸（宽×深×高） | 440mm x 220mm x 44mm |
| Technical specification: 机架尺寸 | 1RU |
| Technical specification: 产品重量 | 2.9 kg |
| Technical specification: 安装方式 | Original manufacturer specification: 壁挂/机架/机柜Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Power supply | Original manufacturer specification: 1个固化电源Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 整机最大功耗 | Original manufacturer specification: 23W (不带PoE负载) 393W (PoE满载)Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 额定输入电压 | 100V AC~240V AC，50~60Hz |
| Technical specification: 最大输入电压 | 90V AC~264V AC，47~63Hz |
| Technical specification: PoE接口 | Supported: PoE/PoE+ |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
