HUACHUANG SHENGHUIBeijing Huachuang Shenghui Network Technology Co., Ltd.

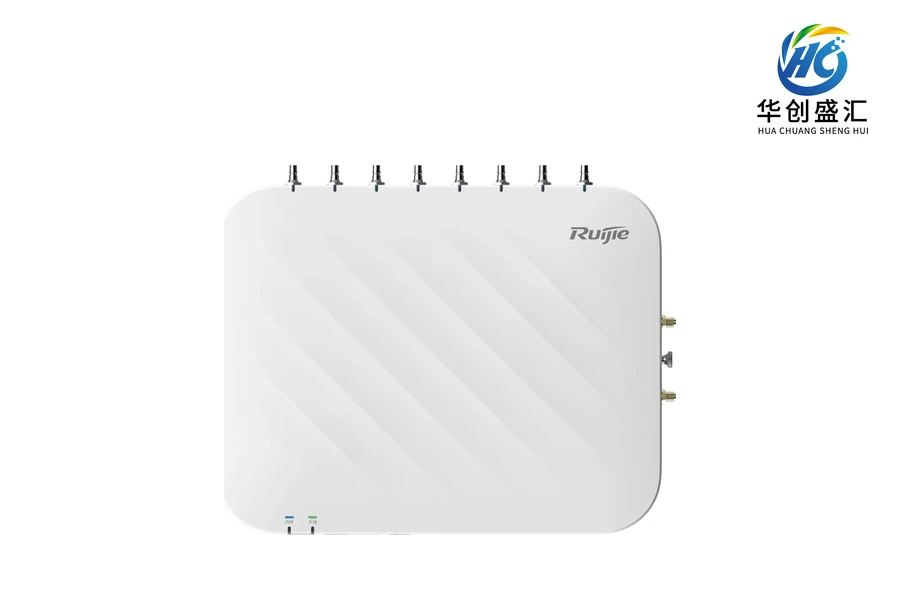

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Wireless
RG-APD4930 wireless equipment
Model：RG-APD4930
Product family：RG-APD4930零漫游主机
RG-APD4930 Ruijie wireless equipment for network equipment selection.
Product overview
RG-APD4930 is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×深×高） | Original manufacturer specification: 300mm×235mm×50mm（不含挂架）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 运输尺寸（宽×深×高） | 373mm×296mm×77.5mm |
| Technical specification: 产品重量 | Original manufacturer specification: 主机：≤2.1kg 挂架：≤0.1kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 运输重量 | 2.5kg |
| Technical specification: 安装方式 | Original manufacturer specification: 壁挂、吸顶Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 射频设计 | Original manufacturer specification: 四射频，整机最大支持8条空间流 ● Wi-Fi 6 双射频，支持4条空间流 Radio1：2.4GHz，2条流：2×2 Radio2：5.8GHz，2条流：2×2 ● Wi-Fi 7 双射频，支持4条空间流 Radio3：5.2GHz，2条流：2×2 Radio4：2.4GHz，2条流：2×2 注意：单台设备上，2.4GHz仅支持启用其中一个射频；1分8部署组网时，只支持单流性能。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating bands | Original manufacturer specification: Radio1 ： 802.11b/g/n/ax ： 2.400GHz ～ 2.4835GHz ， HT20~HT40 ， HE20~HE40 Radio2 ： 802.11a/n/ac/ax ： 5.470GHz ～ 5.850GHz ， HT20~HT40 ， VHT20~VHT160 ， HE20~HE160 Radio3 ： 802.11a/n/ac/ax/be ： 5.150GHz ～ 5.350GHz ， HT20~HT40 ， VHT20~VHT160 ， HE20~HE160 ， EHT20~EHT160 Radio4 ： 802.11b/g/n/ax/be ： 2.400GHz ～ 2.4835GHz ， HT20~HT40 ， HE20~HE40 ， EHT20~EHT40 注意：工作频段根据不同国家配置有所变化Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 传输速率 | Original manufacturer specification: Radio1 ： 2.4GHz ， 575Mbps Radio2 ： 5.8GHz ， 2.400Gbps Radio3 ： 5.2GHz ， 2.882Gbps Radio4 ： 2.4GHz ， 688Mbps 单台设备上， 2.4GHz 仅支持启用其中一个射频 2.4GHz 采用 Radio4 部署时可达最佳配置，整机最大无线接入速率： 5.8GHz+5.2GHz+2.4GHz ， 5.970Gbp sSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 数据包聚合 | A-MPDU（Tx/Rx），A-MSDU（Tx/Rx） |
| Technical specification: 天线类型 | Original manufacturer specification: 外置全向天线、外置定向天线Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线增益 | Original manufacturer specification: 外置全向天线： 2.4GHz：0.71dBi 5GHz：3.99dBi 外置定向天线： 2.4GHz：6.5dBi 5GHz：10dBiSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 最大发射功率 | Original manufacturer specification: 2.4GHz：12dBm 5GHz：20dBm 注意：实际发射功率遵照不同国家和地区法规而有所不同。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 功率调整步长 | 1dBm |
| Technical specification: 射频技术 | Original manufacturer specification: 802.11b射频信道编码：直接序列扩展频谱（DSSS） 802.11a/g/n/ac射频调制：正交频分复用（OFDM） 802.11ax射频调制：正交频分多址接入（OFDMA） 802.11be射频调制：正交频分多址接入（OFDMA）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
