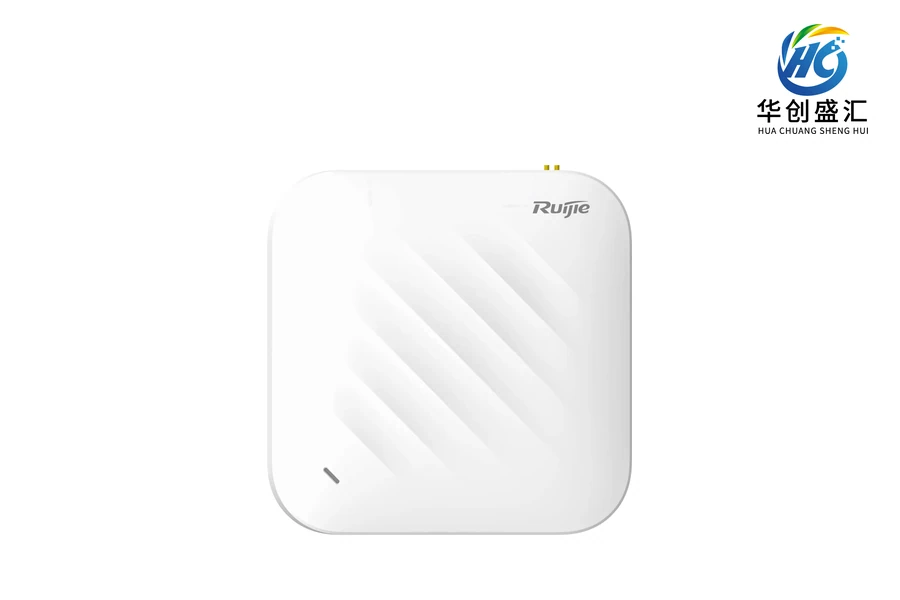

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Wireless
RG-AP9751-R wireless equipment
Model：RG-AP9751-R
Product family：RG-AP9751-R四射频Wi-Fi 7 AR系列AP
RG-AP9751-R Ruijie wireless equipment for network equipment selection.
Product overview
RG-AP9751-R is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×深×高） | 220mm×220mm×42.7mm |
| Technical specification: 运输尺寸（宽×深×高） | 485mm×346mm×340mm |
| Technical specification: 产品重量 | Original manufacturer specification: 主机：1.2kg 挂架：0.1kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 运输重量 | Original manufacturer specification: 单台1.5 kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 安装方式 | Original manufacturer specification: 吸顶、壁挂Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 防盗锁 | Original manufacturer specification: 暗锁、明锁Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 射频设计 | Original manufacturer specification: 四射频设计，整机支持12条空间流 Radio1：2.4GHz，2条流，2×2，MIMO Radio2：5GHz，4条流，4×4，MU-MIMO Radio3：5GHz，4条流，4×4，MU-MIMO Radio4：AI Radio，2.4GHz/5GHz，2条流，2×2，MIMOSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating bands | Original manufacturer specification: Radio1：802.11b/g/n/ax/be，2.400GHz~2.4835GHz Radio2：802.11a/n/ac/ax/be，5.470 GHz ~ 5.725GHz，5.725 GHz ~ 5.850GHz Radio3：802.11a/n/ac/ax/be，5.150GHz～5.350GHz Radio4：802.11b/g/n/ax，2.400GHz~2.4835GHz；802.11a/n/ac/ax，5.150GHz~5.850GHz 注意：工作频段根据不同国家配置有所变化Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 传输速率 | Original manufacturer specification: 整机最大接入速率：2.4GHz+5GHz+5GHz，12.218Gbps Radio1：2.4GHz，0.688Gbps Radio2：5GHz，5.765Gbps Radio3：5GHz，5.765GbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 数据包聚合 | A-MPDU（Tx/Rx），A-MSDU（Tx/Rx） |
| Technical specification: 天线类型 | Original manufacturer specification: 内置智能天线Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线增益 | Original manufacturer specification: 2.4GHz峰值增益3dBi 5GHz峰值增益3dBiSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 最大发射功率 | Original manufacturer specification: 2.4GHz频段：23dBm 5GHz频段：23dBm 注意：实际发射功率遵照不同国家和地区法规而有所不同。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 功率调整步长 | 1dBm |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
