锐捷 Ruijie / Wireless

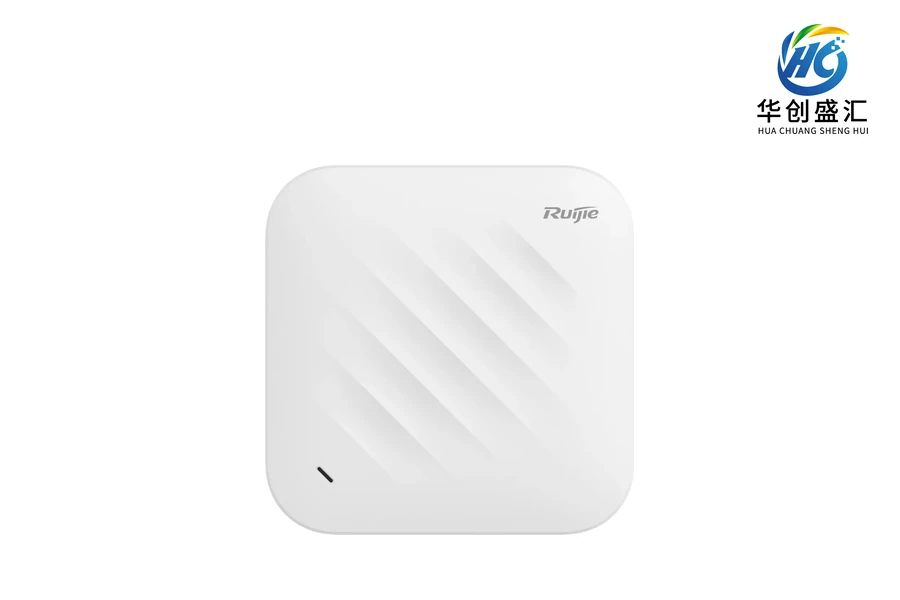

RG-AP9250-R wireless equipment
Model：RG-AP9250-R
Product family：新品 RG-AP9250-R Wi-Fi 7四射频6.452Gbps内置AI Radio，放装型AR系列高密AP，RG-AP9250-R 10G光口+5G电口，组网更灵活 四射频设计，独立AI Radio智能引导终端漫游，保障业务不中断 AI Radio独立进行实时、全频段安全扫描，无线体验和网络安全兼得 新一代Wi-Fi 7 技术，体验6.452Gbps高速无线 支持WIS云统一管理，智能调优，让运维更轻松 Wi-Fi 7 四射频 10G光口+5G电口 Al Radio 高密AP 问答：6 查看详情
RG-AP9250-R Ruijie wireless equipment for network equipment selection.
Product overview
RG-AP9250-R is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×深×高） | Original manufacturer specification: 220mm×220mm×42.7mm（不含挂架） 220mm×220mm×59.8mm（含挂架）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 运输尺寸（宽×深×高） | 238mm×226mm×70.5mm |
| Technical specification: 产品重量 | Original manufacturer specification: 主机：1.2kg 挂架：0.05kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 运输重量 | 1.5kg |
| Technical specification: 安装方式 | Original manufacturer specification: 吸顶、壁挂Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 防盗锁 | Original manufacturer specification: 暗锁、明锁Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 射频设计 | Original manufacturer specification: 四射频设计，整机支持8条空间流 Radio1：2.4GHz，2条流，2×2，MIMO Radio2：5GHz，2条流，2×2，MIMO Radio3：5GHz，2条流，2×2，MIMO Radio4：AI Radio，2.4GHz/5GHz，2条流，2×2，MIMOSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating bands | Original manufacturer specification: Radio1：802.11b/g/n/ax/be，2.400GHz~2.4835GHz，EHT20/EHT40 Radio2：802.11a/n/ac/ax/be，5.470 GHz ~ 5.725GHz，5.725 GHz ~ 5.850GHz，EHT20/EHT40/EHT80/EHT160 Radio3：802.11a/n/ac/ax/be，5.150GHz～5.350GHz，EHT20/EHT40/EHT80/EHT160 Radio4：802.11b/g/n/ax，2.400GHz~2.4835GHz；802.11a/n/ac/ax，5.150GHz~5.850GHz，HE20/HE40/HE80 注意：工作频段根据不同国家配置有所变化Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 传输速率 | Original manufacturer specification: Radio1：2.4GHz，688Mbps Radio2：5GHz，2.882Gbps Radio3：5GHz，2.882Gbps 整机最大接入速率：2.4GHz+5GHz+5GHz，6.452GbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 数据包聚合 | A-MPDU（Tx/Rx），A-MSDU（Tx/Rx） |
| Technical specification: 天线类型 | Original manufacturer specification: 内置全向智能天线Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线增益 | 2.4GHz：3dBi 5GHz：3dBi |
| Technical specification: 最大发射功率 | Original manufacturer specification: 2.4GHz频段：23dBm 5GHz频段：23dBm 注意：实际发射功率遵照不同国家和地区法规而有所不同。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 功率调整步长 | 1dBm |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
