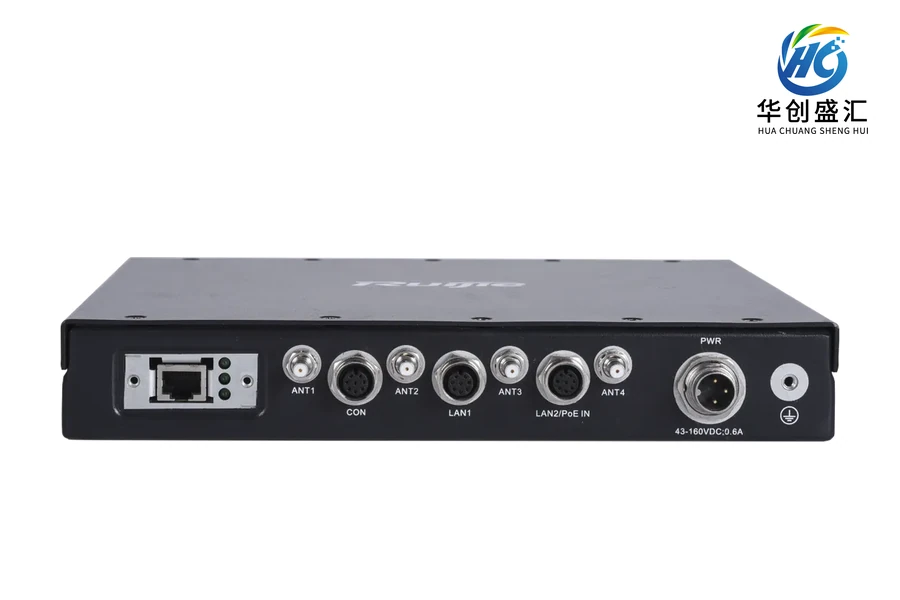

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Wireless
RG-AP680-PIS wireless equipment
Model：RG-AP680-PIS
Product family：RG-AP680-PIS双射频Wi-Fi 6车载AP
RG-AP680-PIS Ruijie wireless equipment for network equipment selection.
Product overview
RG-AP680-PIS is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×高×深） | 255mm × 216mm × 40mm |
| Weight | Original manufacturer specification: 主机：≤ 2kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 安装方式 | Original manufacturer specification: 支持车载安装Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 射频设计 | Original manufacturer specification: 双射频 整机支持 6 条空间流 Radio1 ： 2.4GHz ， 2 条流： 2 × 2 ， MIMO Radio2 ： 5GHz ， 4 条流： 4 × 4 ， MIMOSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating bands | Original manufacturer specification: Radio1 ： 802.11b/g/n/ax ， 2.400GHz ～ 2.483GHz Radio2 ： 802.11a/n/ac/ax ， 5.150GHz ～ 5.350GHz ， 5.470GHz ～ 5.725GHz ， 5.725GHz ～ 5.850GHz 注：工作频段根据不同国家配置有所变化Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 传输速率 | Original manufacturer specification: Radio1 ： 2.4GHz ， 575Mbps Radio2 ： 5GHz ， 4.8Gbps 整机最大接入速率 2.4GHz+5GHz ， 5.375GbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线增益 | 5GHz ： 12dBi |
| Technical specification: 最大发射功率 | Original manufacturer specification: 29dBm 注意：实际发射功率遵照不同国家和地区法规而有所不同。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 功率调整步长 | 1dBm |
| Technical specification: 调制类型 | 802.11b ： BPSK 、 QPSK 、 CCK 802.11a/g/n ： BPSK 、 QPSK 、 16-QAM 、 64-QAM 802.11ac ： BPSK 、 QPSK 、 16-QAM 、 64-QAM 、 256-QAM 802.11ax ： BPSK 、 QPSK 、 16-QAM 、 64-QAM 、 256-QAM 、 1024-QAM |
| Technical specification: 物联网 | Original manufacturer specification: 蓝牙 5.1 支持通过蓝牙串口远程维护 支持 Zigbee 、 RFID 、 Thread 等物联网协议（通过软件升级支持）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化业务接口 | Original manufacturer specification: 下联： 1 个 10/100/1000Base-T 自适应以太网接口 1 个 10/100/1000/2500Base-T 自适应以太网接口，支持 IEEE 802.3af 与 802.3at 标准 PoE 受电Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化管理接口 | Original manufacturer specification: 1 个 RJ45 Console 接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 状态指示灯 | Original manufacturer specification: 1 个电源指示灯 1 个有线口状态指示灯 1 个无线状态指示灯Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
