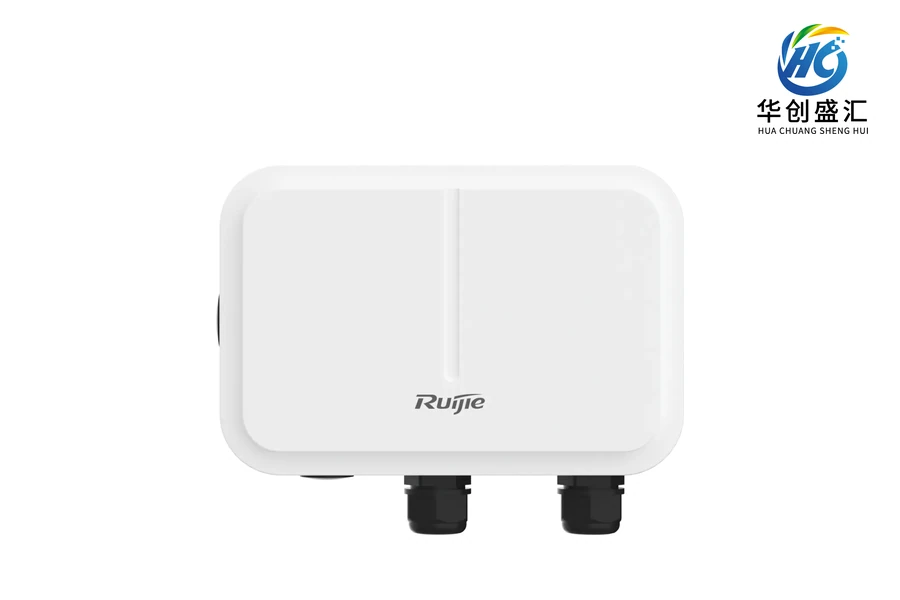

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Wireless
RG-AP680-CD(V3) wireless equipment
Model：RG-AP680-CD(V3)
Product family：RG-AP680-CD(V3)双射频AP
RG-AP680-CD(V3) Ruijie wireless equipment for network equipment selection.
Product overview
RG-AP680-CD(V3) is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×高×深） | 251mm×168mm×64mm |
| Weight | Original manufacturer specification: 主机： 1.5kg 挂架： 0.2kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 安装方式 | Original manufacturer specification: 壁挂、抱杆Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 挂架尺寸（宽×高×深） | 115mm×115mm×126mm |
| Technical specification: 挂机孔洞间距 | 90mm×43.3mm |
| Technical specification: 挂架孔洞直径 | 8mm |
| Technical specification: 抱杆直径 | 40mm~70mm |
| Technical specification: 射频设计 | Original manufacturer specification: 双射频 整机支持 4 条空间流 Radio1 ： 2.4GHz ， 2 条流： 2 × 2 ， MU-MIMO Radio2 ： 5GHz ， 2 条流： 2 × 2 ， MU-MIMOSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating bands | Original manufacturer specification: Radio1 ： 802.11b/g/n/ax ： 2.400GHz ~ 2.483GHz Radio2 ： 802.11a/n/ac/ax ： 5.150GHz ～ 5.350GHz ， 5.470GHz ～ 5.850GHz 注意：工作频段根据不同国家配置有所变化Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 传输速率 | Original manufacturer specification: Radio1 ： 2.4GHz ， 575Mbps Radio2 ： 5GHz ， 2.4Gbps 整机最大接入速率 2.4GHz+5GHz ， 2.975GbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线类型 | Original manufacturer specification: 内置定向天线 2.4GHz 天线水平波瓣角 60 °，垂直波瓣角 30 ° 5GHz 天线水平波瓣角 60 °，垂直波瓣角 30 °Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线增益 | 2.4GHZ ： 9dBi 5GHZ ： 9dBi |
| Technical specification: 最大发射功率 | Original manufacturer specification: 28dBm 注意：实际发射功率遵照不同国家和地区法规而有所不同。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 功率调整步长 | 1dBm |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
