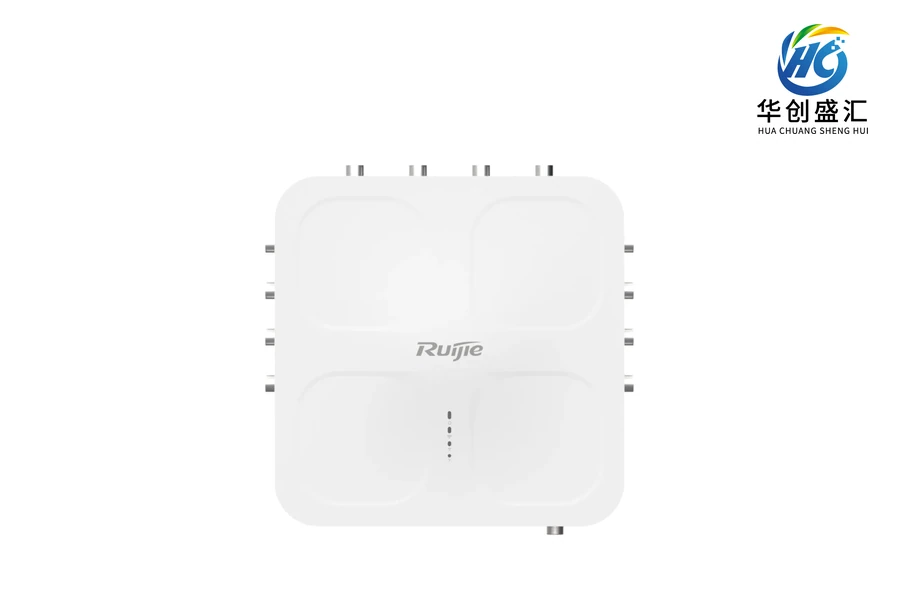

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Wireless
RG-AP680-AR wireless equipment
Model：RG-AP680-AR
Product family：RG-AP680-AR四射频AR系列AP
RG-AP680-AR Ruijie wireless equipment for network equipment selection.
Product overview
RG-AP680-AR is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×深×高） | 300mm×300mm×94mm |
| Weight | Original manufacturer specification: 主机：≤4.5kg 挂架：≤1.5kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 安装方式 | Original manufacturer specification: 壁挂、抱杆Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 射频设计 | Original manufacturer specification: 四射频设计，4个射频口，第4个射频口支持2.4GHz/5GHz频段灵活切换 整机支持14条空间流 Radio1：2.4GHz，4条流：4×4，MU-MIMO Radio2：5GHz，4条流：4×4，MU-MIMO Radio3：5GHz，4条流：4×4，MU-MIMO Radio4：2.4G/5GHz，2条流：2×2，MIMOSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating bands | Original manufacturer specification: Radio1：802.11b/g/n/ax，2.400GHz～2.483GHz Radio2：802.11a/n/ac/ax，5.150Ghz～5.350GHz，5.470GHz～5.725GHz， 5.725GHz～5.850GHz Radio3：802.11a/n/ac/ax，5.150GHz～5.350GHz Radio4： 802.11b/g/n，2.400GHz～2.483GHz 802.11a/n/ac，5.150Ghz～5.350GHz，5.470GHz～5.725GHz，5.725GHz～5.850GHz 注意：工作频段根据不同国家配置有所变化Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 传输速率 | Original manufacturer specification: Radio1：2.4GHz，1.15Gbps Radio2：5GHz，4.8Gbps Radio3：5GHz，4.8Gbps Radio4：2.4GHz/5GHz，300Mbps/867Mbps 整机最大接入速率 2.4GHz+5GHz+5GHz+2.4GHz，11.05Gbps 2.4GHz+5GHz+5GHz+5GHz，11.617GbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线类型 | Original manufacturer specification: 内置全向天线，并支持内外置天线切换Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线增益 | 2.4GHz：3dBi 5GHz：3dBi |
| Technical specification: 最大发射功率 | Original manufacturer specification: 29dBm 注意：实际发射功率遵照不同国家和地区法规而有所不同。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 功率调整步长 | 1dBm |
| Technical specification: 调制类型 | OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM：BPSK，QPSK，16QAM ，64QAM，256QAM and 1024QAM OFDMA |
| Technical specification: 接收灵敏度 | 11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps） 11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） 11ac：20MHz：-88dBm（MCS0），-63dBm（MCS9） 11ac：40MHz：-85dBm（MCS0），-60dBm（MCS9） 11ac：80MHz：-85dBm（MCS0），-60dBm（MCS9） 11ac：160MHz: -80dBm（MCS0），-55dBm（MCS9） 11ax：80MHz：-82dBm（MCS0），-57dBm（MCS9），-52dBm（MCS11） 11ax：160MHz：-80dBm（MCS0），-49dBm（MCS11） |
| Technical specification: 物联网 | Original manufacturer specification: 蓝牙5.1 支持通过蓝牙串口远程维护 支持Zigbee、RFID、Thread等物联网协议（通过软件升级支持）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 固化业务接口 | Original manufacturer specification: 上联：1个100/1000/2500/5000Base-T自适应以太网接口，支持IEEE 802.3af/802.3at/802.3bt标准PoE受电 2个10G SFP+ 自适应以太网光口，兼容2.5G/1G光口 下联：1个10/100/1000Base-T自适应以太网接口，支持PSE对外供电（802.3af标准，支持15.4W对外输出），对外扩展锐捷物联网模块。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
