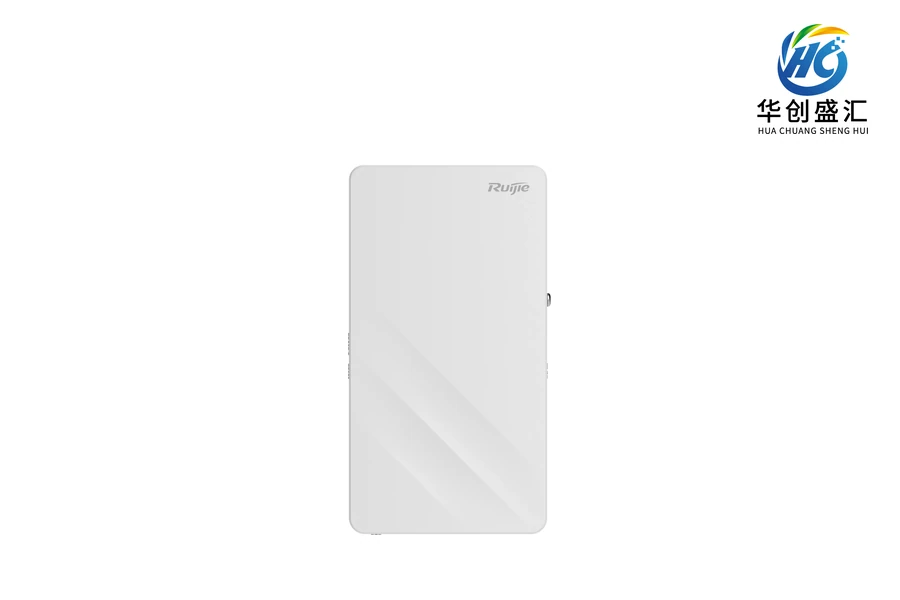

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Wireless
RG-AP1920(V2) wireless equipment
Model：RG-AP1920(V2)
Product family：RG-AP1920(V2)双射频无线AP
RG-AP1920(V2) Ruijie wireless equipment for network equipment selection.
Product overview
RG-AP1920(V2) is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×高×深） | Original manufacturer specification: 86mm×160mm×35mm（不含挂架） 86mm×160mm×36.5mm（包含挂架）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 运输尺寸（宽×高×深） | 113mm×177.5mm×63mm |
| Technical specification: 产品重量 | Original manufacturer specification: 主机：0.3kg 挂架：0.05kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 运输重量 | 0.43kg |
| Technical specification: 安装方式 | Original manufacturer specification: 壁挂、86盒Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 外观颜色 | Original manufacturer specification: 雅白Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 防盗锁 | Original manufacturer specification: 明锁Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 挂架尺寸（宽×高×深） | 105mm×79mm×7mm |
| Technical specification: 挂机孔洞间距 | 60mm |
| Technical specification: 挂架孔洞直径 | 4.5mm |
| Technical specification: 射频设计 | Original manufacturer specification: 双射频： 整机支持4条空间流 Radio1：2.4GHz，2条流：2×2，MU-MIMO Radio2：5GHz，2条流：2×2，MU-MIMOSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating bands | Original manufacturer specification: Radio1： 802.11b/g/n/ax/be ：2.400GHz ~ 2.4835GHz，EHT20/EHT40 Radio2： 802.11a/n/ac/ax/be ：5.150GHz ~ 5.350GHz，5.470GHz～5.725GHz，5.725GHz ~ 5.850GHz，EHT20/EHT40/EHT80/EHT160 注：工作频段根据不同国家配置有所变化Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 传输速率 | Original manufacturer specification: Radio1：2.4GHz，688Mbps Radio2：5GHz，2.882Gbps 整机最大接入速率 2.4GHz+5GHz，3.570GbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线类型 | Original manufacturer specification: 内置全向天线（2根2.4GHz/5GHz双频天线）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
