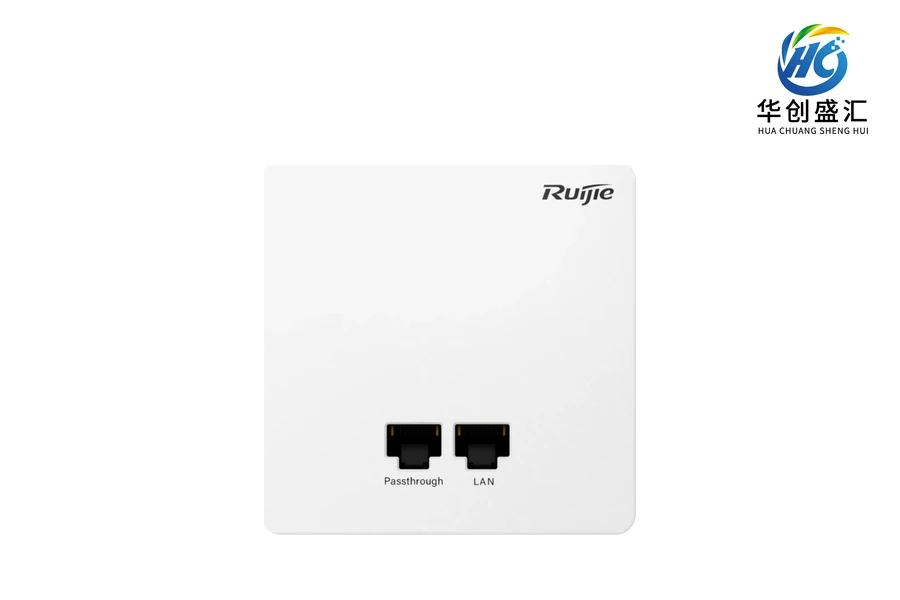

Official manufacturer family image; appearance may vary by model.
锐捷 Ruijie / Wireless
RG-AP180-L-A(V3) wireless equipment
Model：RG-AP180-L-A(V3)
Product family：RG-AP180-L-A(V3)双射频Wi-Fi 6 AP
RG-AP180-L-A(V3) Ruijie wireless equipment for network equipment selection.
Product overview
RG-AP180-L-A(V3) is Ruijie wireless equipment. The specifications below summarize the manufacturer product page for comparing interfaces, performance and deployment needs. The manufacturer image shows the device or its product family; confirm the appearance and configuration for the ordered model. Contact us for equipment selection and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Technical specification: 产品尺寸（宽×高×深） | 86mm×86mm×38mm |
| Weight | 0.3kg |
| Technical specification: 安装方式 | Original manufacturer specification: 86型面板安装Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 外观颜色 | Original manufacturer specification: 雅白Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 射频设计 | Original manufacturer specification: 双射频，整机支持4条空间流 Radio1：2.4GHz，2条流：2×2，MU-MIMO Radio2：5GHz，2条流：2×2，MU-MIMOSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating bands | Original manufacturer specification: Radio1：802.11b/g/n/ax，2.400GHz～2.483GHz Radio2：802.11a/n/ac/ax，5.150GHz～5.350GHz，5.470GHz～5.725GHz，5.725GHz～5.850GHz 注意：工作频段根据不同国家配置有所变化Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 传输速率 | Original manufacturer specification: Radio1：2.4GHz，575Mbps Radio2：5GHz，2.4Gbps 整机最大接入速率：2.4GHz+5GHz，2.975GbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线类型 | Original manufacturer specification: 内置智能天线Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 天线增益 | 2.4GHz：1.5dBi 5GHz：2.5dBi |
| Technical specification: 最大发射功率 | Original manufacturer specification: 20dBm 注意：实际发射功率遵照不同国家和地区法规而有所不同。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Technical specification: 功率调整步长 | 1dBm |
| Technical specification: 调制类型 | 802.11b：BPSK、QPSK、CCK 802.11a/g/n：BPSK、QPSK、16-QAM、64-QAM 802.11ac：BPSK、QPSK、16-QAM、64-QAM、256-QAM 802.11ax：BPSK、QPSK、16-QAM、64-QAM、256-QAM、1024-QAM |
| Technical specification: 接收灵敏度 | 802.11a：-89dBm（6Mbps），-82dBm（24Mbps），-78dBm（36Mbps），-72dBm（54Mbps） 802.11b/g：-91dBm(1Mbps)，-90dBm(5Mbps)，-87dBm(11Mbps) 802.11n：-85dBm@MCS0，-67dBm@MCS7，-67dBm@MCS7 802.11ac：VHT20：-85dBm（MCS0）, -62dBm（MCS8） 802.11ac：VHT40：-82dBm（MCS0）, -57dBm（MCS9） 802.11ac：VHT80：-79dBm（MCS0）, -53dBm（MCS9） 802.11ax：HE80：-79dBm（MCS0）, -53dBm（MCS9）,-52dBm（MCS11） 802.11ax：HE160：-76dBm（MCS0）, -50dBm（MCS9）,-49dBm（MCS11） |
| Technical specification: 固化业务接口 | Original manufacturer specification: 上联：1个10/100/1000Base-T自适应以太网接口，支持IEEE 802.3af标准PoE供电；1个passthrough透传口 下联：1个10/100/1000Base-T自适应以太网接口；1个passthrough透传口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
