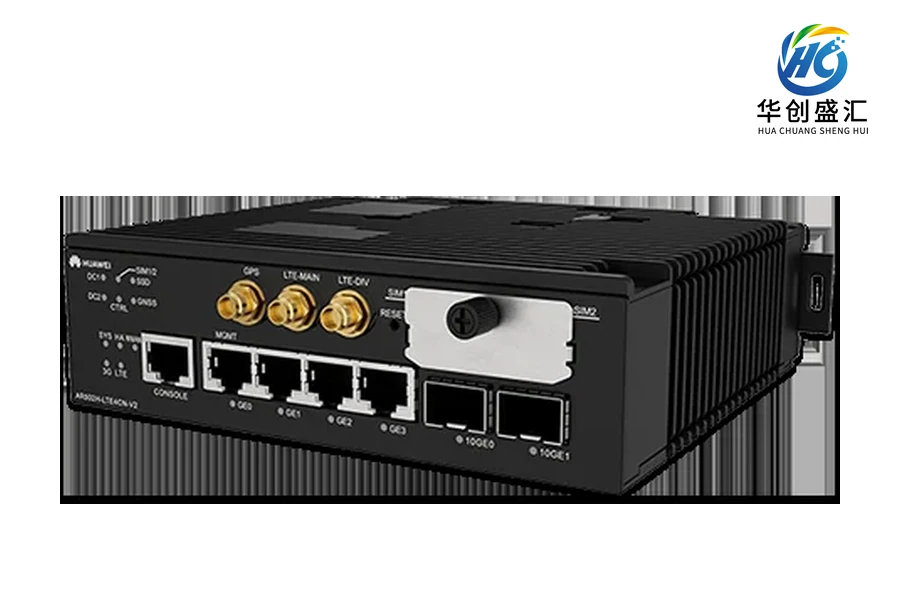

Official manufacturer family image; appearance may vary by model.
华为 HUAWEI / Routers
Huawei AR502H-LTE4CN-V2 router
Model：AR502H-LTE4CN-V2
Product family：AR502H-V2
AR502H-LTE4CN-V2 Huawei router. Review official interfaces, performance and deployment requirements.
Product overview
Huawei AR502H-LTE4CN-V2 is listed in the AR502H-V2 product family. Specifications below follow the corresponding official table column. The manufacturer family image may differ from the selected configuration. Contact us to confirm interfaces, configuration, compatibility and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Official specification: 固定以太接口 | Manufacturer specification: 4*GE电，2*10GE SFP+Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 固定串口 | Manufacturer specification: 2*RS485或RS232（隔离，485与232通过软件切换）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 告警口 | Manufacturer specification: 1路DI（无源触点输入） | 1路DO（工业端子，支持常开和常闭）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: USB2.0 | 1 |
| Official specification: Console口 | 1 |
| Official specification: SIM 卡 | Manufacturer specification: 支持2*micro-SIM（双卡单待）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: RTC/超温告警 | Manufacturer specification: 支持Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 定位系统 | Manufacturer specification: 支持北斗/GPS/伽利略/GLONASSSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: M.2硬盘接口 | Manufacturer specification: 支持，NVME SSD（客户自配，工业级硬盘），最大支持256GBSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 电源 | Manufacturer specification: 双DC冗余（工业端子）：9.6~60VDC（最大电压范围） | 12~48VDC（额定电压范围）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 外形尺寸(H x W x D) | 44 mm x 150 mm x 133 mm |
| Official specification: 安全 | Manufacturer specification: ACL/ACL6，AAA | RADIUS，HWTACACS，NAC，PKI | 风暴抑制，ARP安全，ICMP安全，攻击防范 | URPF，CPCAR，攻击溯源，国密算法SM3/SM4 | 802.1X认证，MAC认证，Portal认证，端口安全 | IPS，AV，URL过滤Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 开放性* | Manufacturer specification: Docker容器，VM（虚拟机） | 镜像管理、公钥管理 | 磁盘加密、节点开放、容器监控 | NCE-Campus管理容器Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
