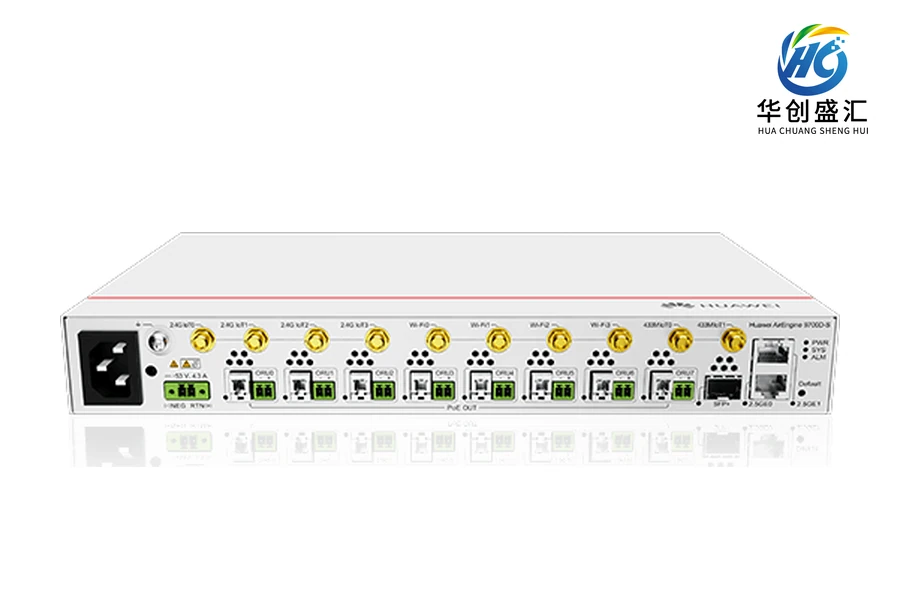

Official manufacturer family image; appearance may vary by model.
华为 HUAWEI / Wireless
Huawei AirEngine 9700D-S wireless device
Model：AirEngine 9700D-S
Product family：AirEngine 9700D-S
AirEngine 9700D-S Huawei wireless device. Review official interfaces, performance and deployment requirements.
Product overview
Huawei AirEngine 9700D-S is listed in the AirEngine 9700D-S product family. Specifications below follow the corresponding official table column. The manufacturer family image may differ from the selected configuration. Contact us to confirm interfaces, configuration, compatibility and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Official specification: 尺寸（宽 x 深 x 高） | 320 mm x 210 mm x 43.6 mm |
| Official specification: 电源输入 | Manufacturer specification: AC: 100V～240V；50/60Hz | DC: 50~57V（备份）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 端口 | Manufacturer specification: 上行：1x10GE光 + 2x2.5GE电 | 下行：8 x光电混合接口（无线射频信号输出接口） | 4xWi-Fi SMA接口+ 6x 物联网 SMA接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Maximum power consumption | Manufacturer specification: 178W（含下挂8个ORU PoE输出）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating temperature | -10℃ ～+50℃ |
| Official specification: MIMO:空间流 | 2.4GHz: 4×4:4，5GHz:8×8:8 |
| Wireless standard | 802.11a/b/g/n/ac/ac wave2/ax |
| Official specification: 无线最高速率 | 10.75 Gbps |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
