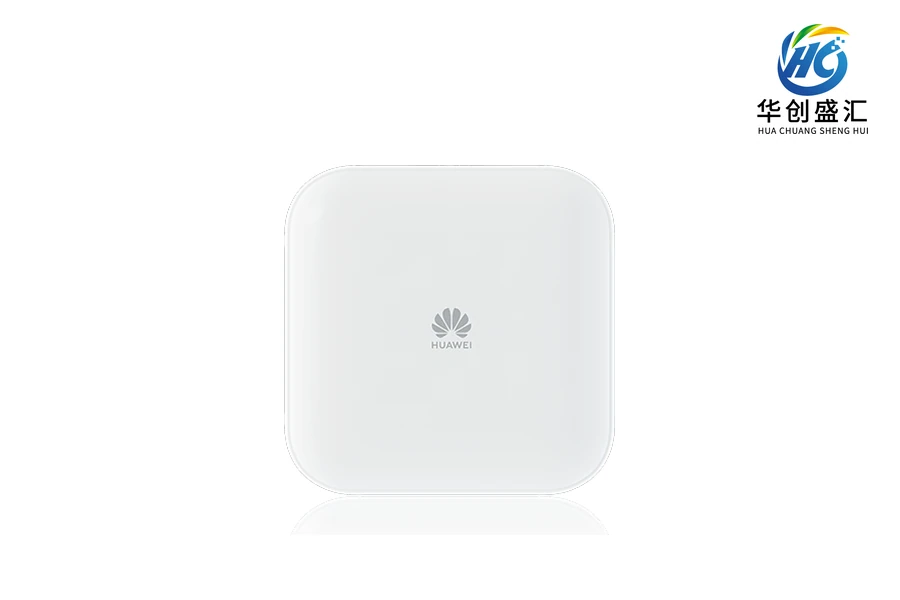

Official manufacturer family image; appearance may vary by model.
华为 HUAWEI / Wireless
Huawei AirEngine 8771-X1T wireless device
Model：AirEngine 8771-X1T
Product family：AirEngine 8771-X1T
AirEngine 8771-X1T Huawei wireless device. Review official interfaces, performance and deployment requirements.
Product overview
Huawei AirEngine 8771-X1T is listed in the AirEngine 8771-X1T product family. Specifications below follow the corresponding official table column. The manufacturer family image may differ from the selected configuration. Contact us to confirm interfaces, configuration, compatibility and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Official specification: 尺寸（宽×深×高） | 220 x 220 x 50 mm |
| Official specification: 电源输入 | Manufacturer specification: DC：43.2V～57.6V | PoE供电：满足802.3bt以太网供电标准，支持双PoE in热备Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 最大用户数 | Manufacturer specification: ≤1536 | 说明：使用环境不同实际用户数存在差异Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating temperature | -10℃ ～+50℃ |
| Official specification: 天线类型 | Manufacturer specification: 内置动态变焦智能天线Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: MIMO:空间流 | 2.4GHz: 4×4:4，5GHz: 4×4:4，6GHz/5GHz: 4×4:4 |
| Wireless standard | 802.11a/b/g/n/ac/ac wave2/ax/be |
| Official specification: 最高速率 | 18.67Gbps |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
