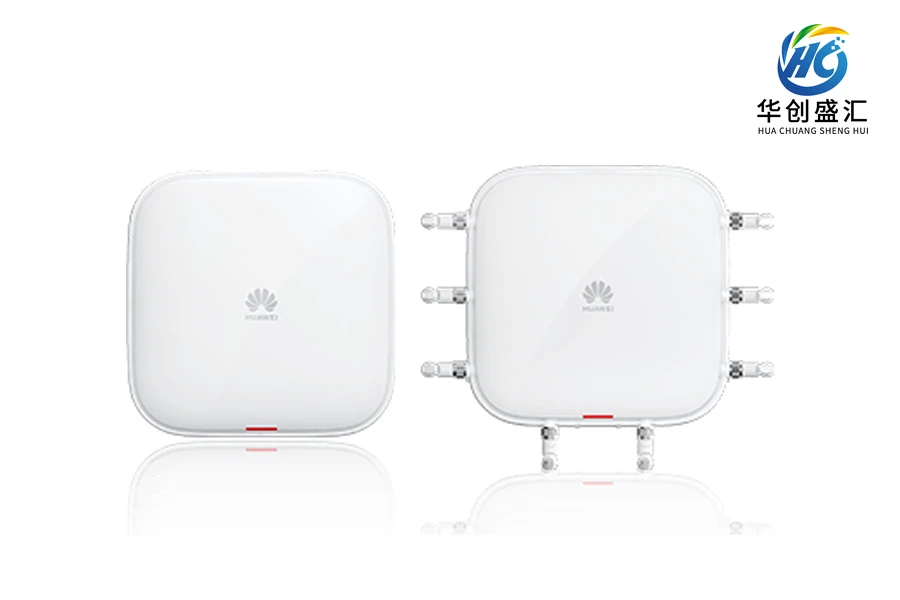

Official manufacturer family image; appearance may vary by model.
华为 HUAWEI / Wireless
Huawei AirEngine 6760-X1 wireless device
Model：AirEngine 6760-X1
Product family：AirEngine 6760-X1 & 6760-X1E
AirEngine 6760-X1 Huawei wireless device. Review official interfaces, performance and deployment requirements.
Product overview
Huawei AirEngine 6760-X1 is listed in the AirEngine 6760-X1 & 6760-X1E product family. Specifications below follow the corresponding official table column. The manufacturer family image may differ from the selected configuration. Contact us to confirm interfaces, configuration, compatibility and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Official specification: 尺寸（ 宽 x 深 x 高） | 220mm×220mm×61mm |
| Official specification: 电源输入 | Manufacturer specification: DC：48V±10% | PoE供电：满足802.3bt以太网供电标准Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 最大用户数 | Manufacturer specification: ≤1024（双射频模式） | 说明： 使用环境不同实际用户数存在差异。Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 接口 | Manufacturer specification: 1x10GE + 1xGE电口 + 1x10GE SFP+光口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 物联网 | Manufacturer specification: 内置物联网插槽Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating temperature | -10℃ ～+50℃ |
| Official specification: 天线类型 | Manufacturer specification: AirEngine 6760-X1：内置智能天线 | AirEngine 6760-X1E：外置天线Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: MIMO:空间流 | Manufacturer specification: 基础能力： | 2.4GHz: 4×4:4, 5GHz: 6×6:6 | RTU License 升级： | 2.4GHz: 4×4:4, 5GHz: 8×8:8 | 2.4GHz: 4×4:4, 5GHz-0: 4×4:4, 5GHz-1: 4×4:4Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Wireless standard | 802.11a/b/g/n/ac/ac Wave2/ax |
| Official specification: 最高速率 | Manufacturer specification: 基础能力：8.35Gbps | RTU License 升级：10.75GbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
