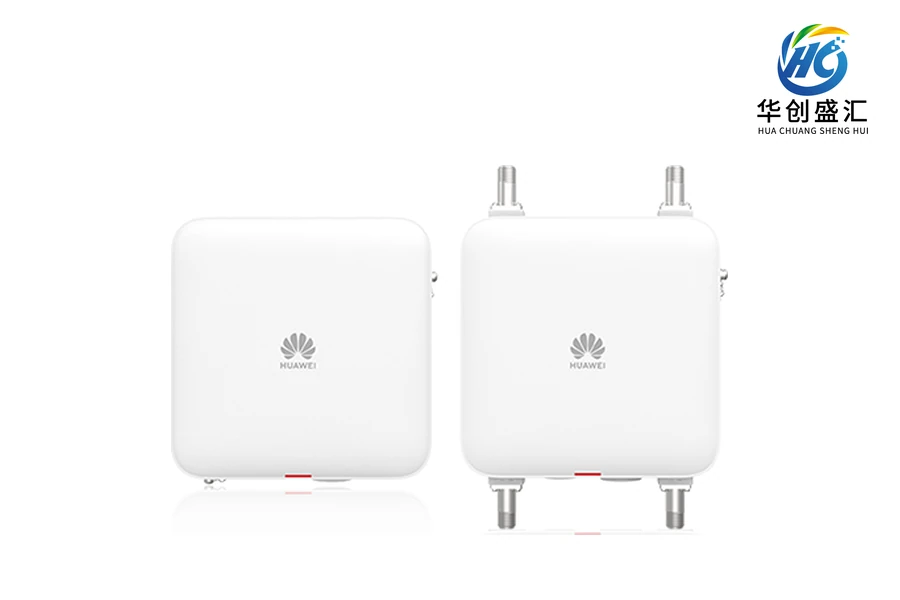

Official manufacturer family image; appearance may vary by model.
华为 HUAWEI / Wireless
Huawei AirEngine 5761R-11 wireless device
Model：AirEngine 5761R-11
Product family：AirEngine 5761R-11 & 5761R-11E
AirEngine 5761R-11 Huawei wireless device. Review official interfaces, performance and deployment requirements.
Product overview
Huawei AirEngine 5761R-11 is listed in the AirEngine 5761R-11 & 5761R-11E product family. Specifications below follow the corresponding official table column. The manufacturer family image may differ from the selected configuration. Contact us to confirm interfaces, configuration, compatibility and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Official specification: 尺寸（宽×深×高） | 200 x 200 x 70 mm |
| Official specification: 电源输入 | Manufacturer specification: PoE供电：满足802.3at/af以太网供电标准 | 说明：802.3af时，AP有限制，详见《规格查询工具》网站Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Maximum power consumption | AirEngine 5761R-11: 17.7W | AirEngine 5761R-11E: 19.6W |
| Official specification: 最大用户数 | Manufacturer specification: ≤1024 | 说明：使用环境不同实际用户数存在差异Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: 天线类型 | Manufacturer specification: AirEngine 5761R-11：内置定向天线 | AirEngine 5761R-11E：外置天线Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Official specification: MIMO:空间流 | Manufacturer specification: AirEngine 5761R-11：2.4GHz: 2×2:2, 5GHz: 2×2:2 | AirEngine 5761R-11E：2.4GHz: 2×2:2, 5GHz: 2×2:2 或 5GHz: 2×2:2, 5GHz: 2×2:2Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Wireless standard | 802.11a/b/g/n/ac/ac wave2/ax |
| Official specification: 最高速率 | AirEngine 5761R-11：1.775Gbps | AirEngine 5761R-11E：2.4Gbps |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
