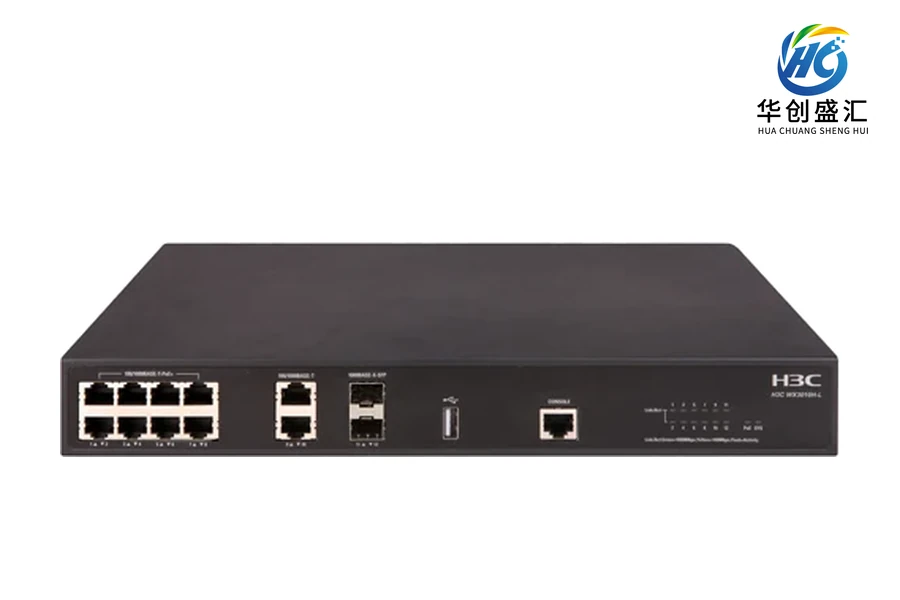

Official manufacturer family image; appearance may vary by model.
H3C WX3010H-L Wireless device
Product family：H3C WX3000H-L
H3C WX3010H-L wireless device. Explore manufacturer-sourced specifications and contact Huachuang Shenghui to confirm configurations and availability.
Product overview
WX3010H-L is an H3C wireless device. This page compiles the model, official family image and key manufacturer specifications for equipment selection. Images may depict the product family. The exact appearance, port layout and supported options can vary by configuration. Confirm hardware version, accessories, compatibility and deployment requirements with the full manufacturer reference. Contact Beijing Huachuang Shenghui Network Technology Co., Ltd. for equipment selection and configuration enquiries.
Key technical specifications
| Specification | Value |
|---|---|
| Dimensions (长×宽×高) | 330*230*43.6mm |
| Interfaces | Original manufacturer specification: 10 GE , 其中8 GE支持PoE+ 2 SFP 1 consoleSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 整机功耗 | 14.5W ~ 21W |
| Weight | 2.25kg |
| Manufacturer specification / 工作/存储环境温度 | 0℃–45℃/-40℃–70℃ |
| Manufacturer specification / 工作/存储环境相对湿度(非凝露) | 5%–95% |
| Manufacturer specification / 安全规范 | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 EN60601-1-2 FDA 21 CFR Subchapter J |
| EMC | ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 |
| MTBF | Original manufacturer specification: ≥38年Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
