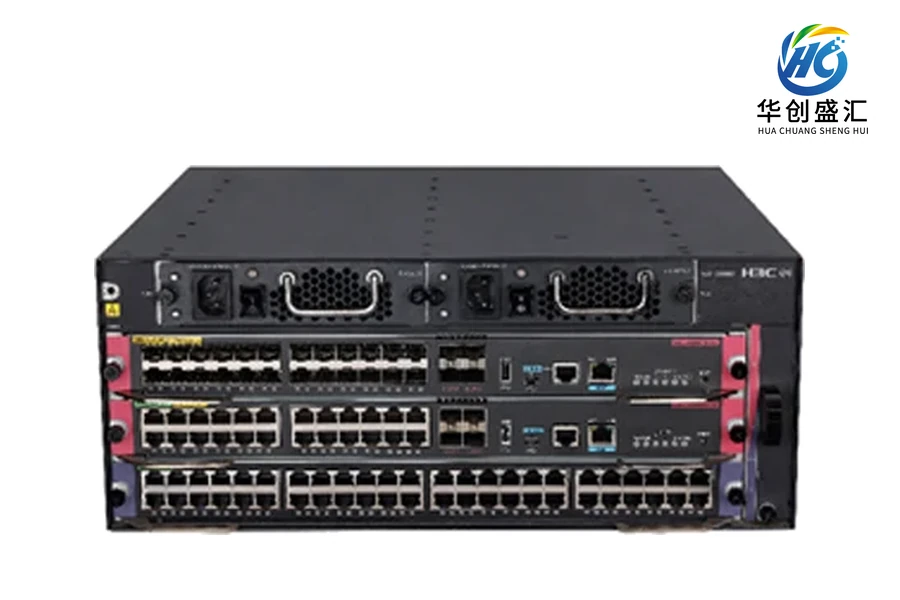

Official manufacturer family image; appearance may vary by model.
H3C US9003 Switch
Product family：H3C US9003
H3C US9003 switch. Explore manufacturer-sourced specifications and contact Huachuang Shenghui to confirm configurations and availability.
Product overview
US9003 is an H3C switch. This page compiles the model, official family image and key manufacturer specifications for equipment selection. Images may depict the product family. The exact appearance, port layout and supported options can vary by configuration. Confirm hardware version, accessories, compatibility and deployment requirements with the full manufacturer reference. Contact Beijing Huachuang Shenghui Network Technology Co., Ltd. for equipment selection and configuration enquiries.
Key technical specifications
| Specification | Value |
|---|---|
| Switching capacity | 68.2/307.2 Tbps |
| Packet forwarding rate | 51200 Mpps |
| MPU slots | 1~2 |
| Service board slots | 1~3 |
| Manufacturer specification / 硬件冗余设计 | Original manufacturer specification: 冗余主控、冗余模块化电源Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Dimensions （H ×W ×D） | 175mm×436mm×420mm |
| Manufacturer specification / 整机重量 | Original manufacturer specification: 满配：<30kgSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 工作环境温度 | 0℃–45℃ |
| Storage环境温度 | -40℃–70℃ |
| Manufacturer specification / 以太网特性 | Original manufacturer specification: 支持802.1Q 支持LLDP 静态MAC配置 支持MAC地址学习数目限制 支持端口镜像和流镜像功能 支持端口隔离 支持802.1d（STP）/802.1w（RSTP）/802.1s（MSTP） 支持PVST+ 支持IEEE 802.3ad（动态链路聚合）、静态链路聚合和跨板链路聚合Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 路由特性 | Original manufacturer specification: 支持静态路由、RIP、OSPF、IS-IS、BGP4 支持等价路由 支持策略路由 支持路由策略 支持IPv4和IPv6双协议栈 支持IPv6静态路由、RIPng、OSPFv3、IS-ISv6、BGP4+ 支持VRRPv3 支持Pingv6、Telnetv6、FTPv6、TFTPv6、DNSv6、ICMPv6 支持IPv4向IPv6的过渡技术，包括：IPv6手工隧道、6to4隧道、ISATAP隧道、GRE隧道 支持IPv6等价路由 支持IPv6策略路由 支持IPv6路由策略Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 组播 | Original manufacturer specification: 支持PIM-DM、PIM-SM、PIM-SSM、MSDP、MBGP、Any-RP等路由协议 支持IGMP V1/V2/V3、IGMP V2/V3 Snooping 支持PIM6-DM、PIM6-SM、PIM6-SSM 支持MLD V1/V2、MLD V1/V2 Snooping 支持组播策略Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
