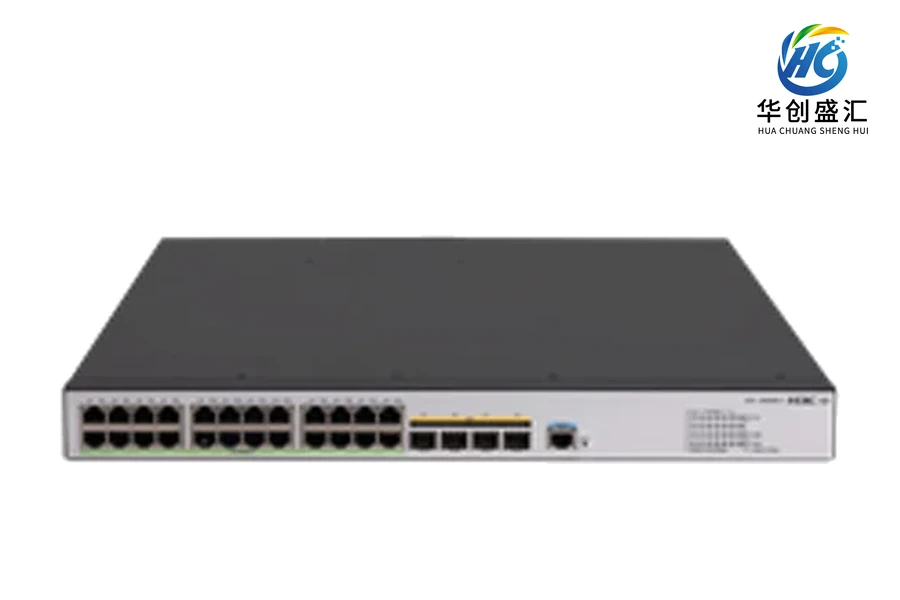

Official manufacturer family image; appearance may vary by model.
H3C US628S-X Switch
Product family：H3C US600S
H3C US628S-X switch. Explore manufacturer-sourced specifications and contact Huachuang Shenghui to confirm configurations and availability.
Product overview
US628S-X is an H3C switch. This page compiles the model, official family image and key manufacturer specifications for equipment selection. Images may depict the product family. The exact appearance, port layout and supported options can vary by configuration. Confirm hardware version, accessories, compatibility and deployment requirements with the full manufacturer reference. Contact Beijing Huachuang Shenghui Network Technology Co., Ltd. for equipment selection and configuration enquiries.
Key technical specifications
| Specification | Value |
|---|---|
| Switching capacity | 1.36Tbps/13.6Tbps |
| Packet forwarding rate | 171Mpps/256Mpps |
| Manufacturer specification / 业务端口描述 * | 24 x 10/100/1000BASE-T copper ports,Supports 4 x 1/10G BASE-X SFP Plus optical ports |
| Dimensions （宽×深×高，单位：mm） | 440×360×43.6 |
| Weight | ≤5.6kg |
| Management口 | 1 x Console ports |
| Manufacturer specification / 功耗（静态） | Original manufacturer specification: 单AC: 16W 单DC: 22W 双AC: 18W 双DC: 27WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 功耗（满负荷时） | Original manufacturer specification: 单AC: 37W 单DC: 41W 双AC: 39W 双DC: 45WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Fans | 2 |
| Ports防雷 | 6KV |
| Manufacturer specification / 工作环境温度 | -5~45℃ |
| Manufacturer specification / 工作环境相对湿度 | 5–95%RH, non-condensing |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
