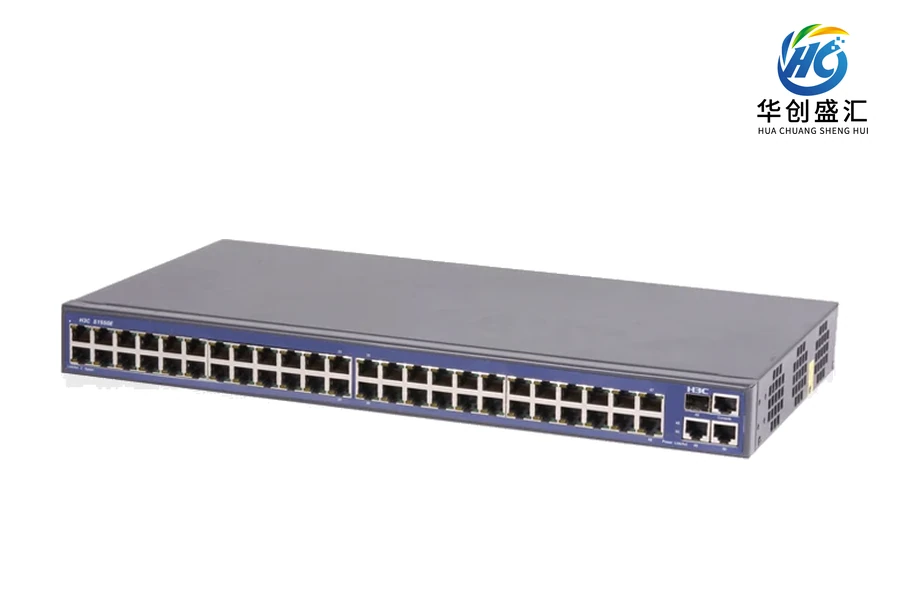

Official manufacturer family image; appearance may vary by model.
H3C S1550 Switch
Product family：H3C S1550
H3C S1550 switch. Explore manufacturer-sourced specifications and contact Huachuang Shenghui to confirm configurations and availability.
Product overview
S1550 is an H3C switch. This page compiles the model, official family image and key manufacturer specifications for equipment selection. Images may depict the product family. The exact appearance, port layout and supported options can vary by configuration. Confirm hardware version, accessories, compatibility and deployment requirements with the full manufacturer reference. Contact Beijing Huachuang Shenghui Network Technology Co., Ltd. for equipment selection and configuration enquiries.
Key technical specifications
| Specification | Value |
|---|---|
| Dimensions （长×宽×高） | 440×230×44 mm |
| Weight | <4Kg |
| Fixed ports | 48 x 10/100Base-TXEthernet copper interfaces 1 x 1000Base-LX/SX optical ports 2 x 1000Base-TEthernet copper interfaces |
| Management端口 | Original manufacturer specification: 1个Console口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 输入电压 | AC100~240V(50Hz-60Hz) |
| Manufacturer specification / 功耗（满负荷时） | Original manufacturer specification: 小于30WSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating temperature | 0–40℃ |
| Operating humidity | 5%~95%, non-condensing |
| VLAN | Original manufacturer specification: 最多支持512个符合IEEE 802.1Q标准的VLANSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / MAC地址表 | Original manufacturer specification: 地址自动学习 最多支持8K个MAC地址Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Ports聚合 | Original manufacturer specification: 支持6组汇聚组，每组最多8个端口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 广播风暴抑制 | Original manufacturer specification: 所有端口上支持基于带宽百分比的广播风暴抑制Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
