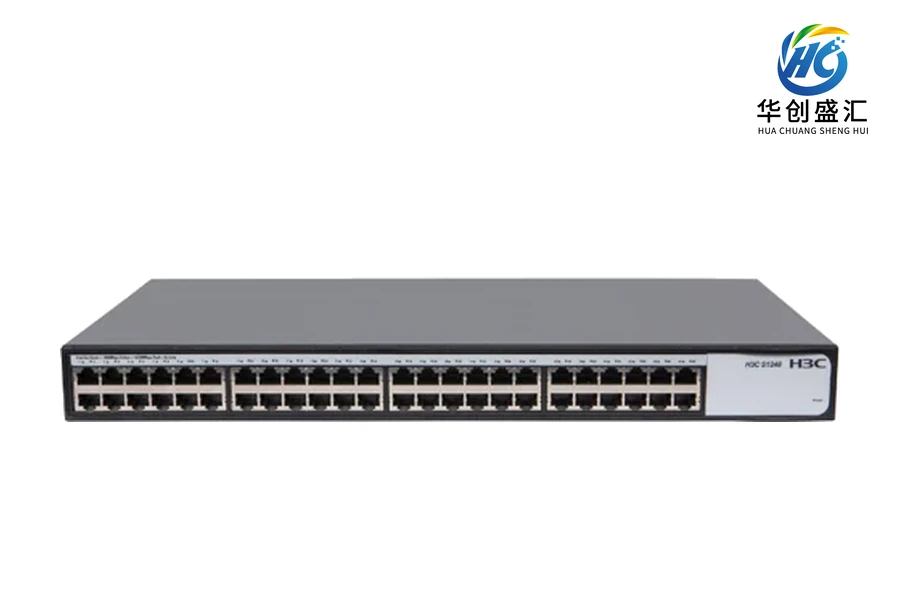

Official manufacturer family image; appearance may vary by model.
H3C S1248 Switch
Product family：H3C S1248
H3C S1248 switch. Explore manufacturer-sourced specifications and contact Huachuang Shenghui to confirm configurations and availability.
Product overview
S1248 is an H3C switch. This page compiles the model, official family image and key manufacturer specifications for equipment selection. Images may depict the product family. The exact appearance, port layout and supported options can vary by configuration. Confirm hardware version, accessories, compatibility and deployment requirements with the full manufacturer reference. Contact Beijing Huachuang Shenghui Network Technology Co., Ltd. for equipment selection and configuration enquiries.
Key technical specifications
| Specification | Value |
|---|---|
| Fixed ports | Original manufacturer specification: 48个10/100/1000Mbps自适应以太网端口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 以太网端口属性 | Original manufacturer specification: 连接器类型：RJ-45 支持10/100/1000Mbit/s传输速率 支持半双工、全双工、自协商工作模式 支持MDI/MDIX自适应Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| MAC | 16K |
| Manufacturer specification / 缓存 | 12Mbits |
| Packet forwarding rate | 71.4Mpps |
| Switching capacity | 96Gbps |
| Manufacturer specification / 输入电压 | 100V–240V AC, 50/60Hz |
| Manufacturer specification / 功耗 | <20W |
| Manufacturer specification / 防雷等级 | 6KV |
| Operating temperature | 0℃–40℃ |
| Cooling | Original manufacturer specification: 风扇散热（1个）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Dimensions （长×宽×高） | 440 x 44 x 238mm |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
