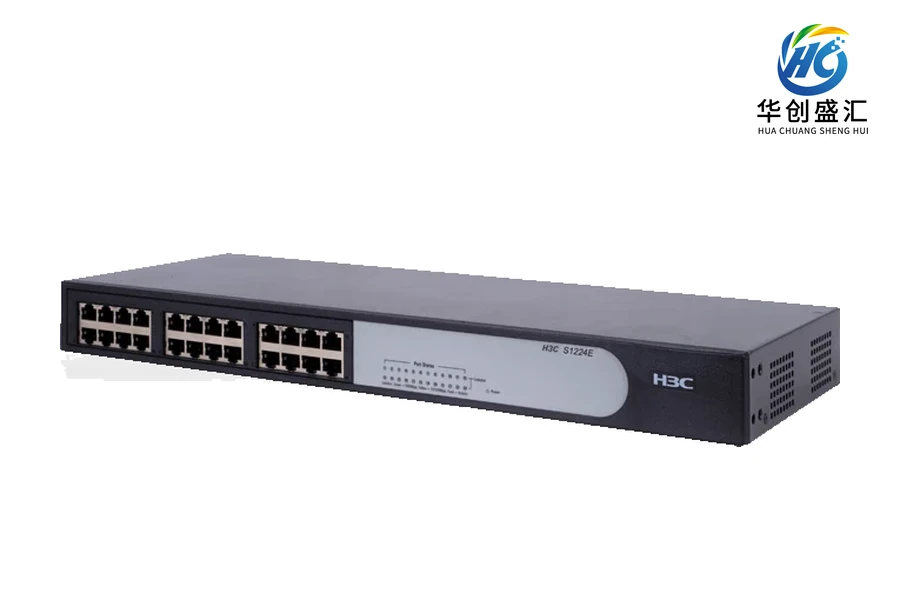

Official manufacturer family image; appearance may vary by model.
H3C S1224E Switch
Product family：H3C S1224E
H3C S1224E switch. Explore manufacturer-sourced specifications and contact Huachuang Shenghui to confirm configurations and availability.
Product overview
S1224E is an H3C switch. This page compiles the model, official family image and key manufacturer specifications for equipment selection. Images may depict the product family. The exact appearance, port layout and supported options can vary by configuration. Confirm hardware version, accessories, compatibility and deployment requirements with the full manufacturer reference. Contact Beijing Huachuang Shenghui Network Technology Co., Ltd. for equipment selection and configuration enquiries.
Key technical specifications
| Specification | Value |
|---|---|
| Dimensions （宽×深×高） | 440*173*44 mm |
| Fixed ports | Original manufacturer specification: 24个10/100/1000Mbps自适应以太网端口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 网线类型 | Original manufacturer specification: 10Base-T： 3/4/5类双绞线，支持最大传输距离100m 100Base-TX： 5/6类双绞线，支持最大传输距离100m 1000Base-T： 5/6类双绞线，支持最大传输距离100mSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| MAC | 8K |
| Manufacturer specification / 缓存 | 4Mb |
| Packet forwarding rate | 35.7Mpps |
| Switching capacity | 48Gbps |
| Manufacturer specification / 输入电压 | 100V–240V AC, 50/60Hz |
| Manufacturer specification / 防雷 | Original manufacturer specification: 共模防护7KV，防雷等级4级Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 功耗 | <20W |
| Manufacturer specification / 工作环境温度 | 0℃–40℃ |
| Manufacturer specification / 工作环境相对湿度 | 5%–95%, non-condensing |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
