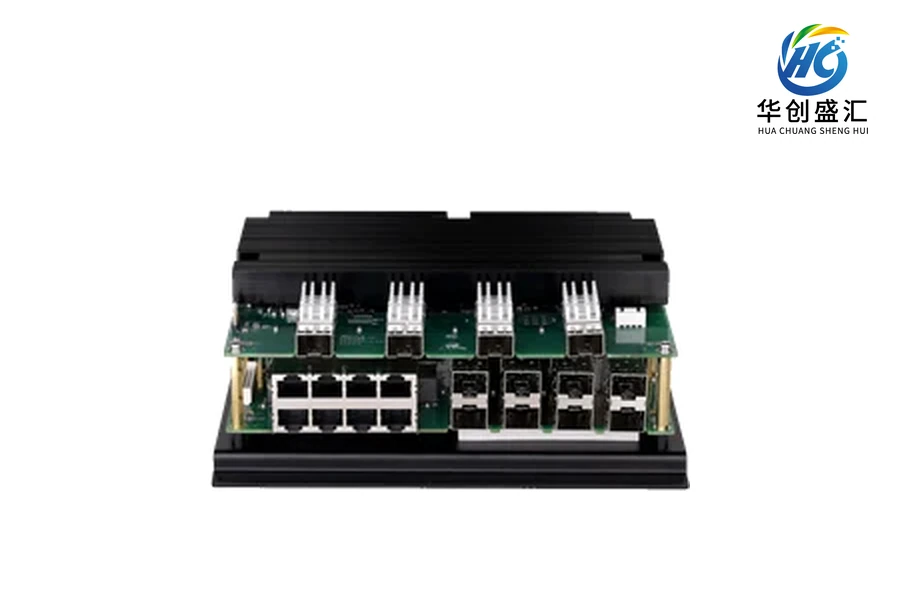

Official manufacturer family image; appearance may vary by model.
H3C IE4320-6T2TP4P-IS Switch
Product family：H3C IE4320-IS
H3C IE4320-6T2TP4P-IS switch. Explore manufacturer-sourced specifications and contact Huachuang Shenghui to confirm configurations and availability.
Product overview
IE4320-6T2TP4P-IS is an H3C switch. This page compiles the model, official family image and key manufacturer specifications for equipment selection. Images may depict the product family. The exact appearance, port layout and supported options can vary by configuration. Confirm hardware version, accessories, compatibility and deployment requirements with the full manufacturer reference. Contact Beijing Huachuang Shenghui Network Technology Co., Ltd. for equipment selection and configuration enquiries.
Key technical specifications
| Specification | Value |
|---|---|
| Switching capacity | 96Gbps |
| Packet forwarding rate | 72Mpps |
| Dimensions | Original manufacturer specification: （宽×深×高）（单位：mm） 195×172.6×54.35Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Weight | ≤0.9kg |
| Manufacturer specification / 业务端口 | Original manufacturer specification: 6个10/100/1000以太网电口,2个Combo（10/100/1000BASE-T电口或者100/1000BASE-X SFP端口），4个1000BASE-X SFP 端口, 4路RS485接口，2路CAN接口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Power supply输入 | Original manufacturer specification: 单路电源输入： DC12V（9~18VDC）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 静态功耗 | ≤ 8.6W |
| Manufacturer specification / 满载功耗 | ≤ 13.3W |
| Cooling | Original manufacturer specification: 无风扇，自然散热Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Operating humidity | 5%~95% (non-condensing) |
| Operating temperature | -35℃~75℃ |
| Storage temperature | -40℃–85℃ |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
