Official manufacturer family image; appearance may vary by model.

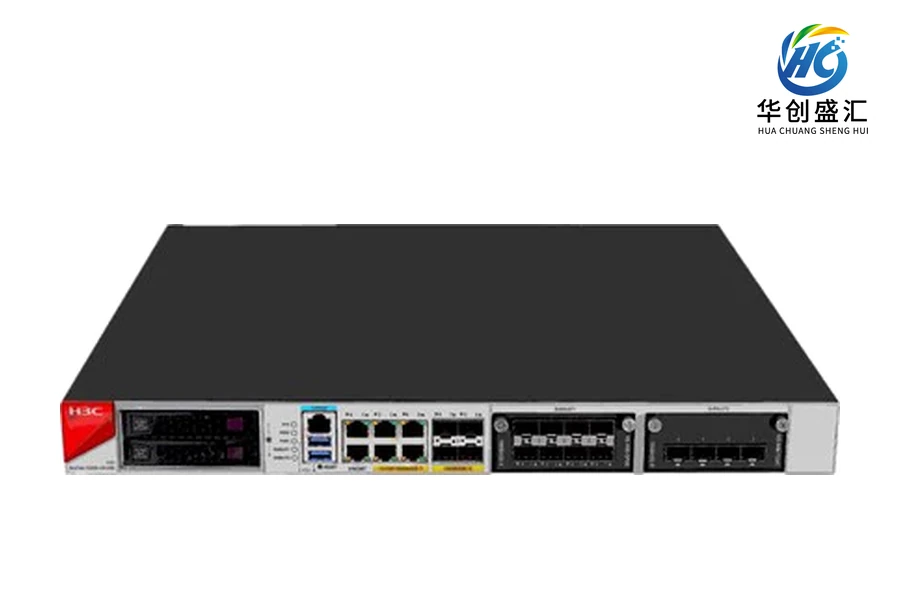

H3C F1000-CN-G35 Firewall
Product family：H3C SecPath F1000-CN-G35
H3C F1000-CN-G35 firewall. Explore manufacturer-sourced specifications and contact Huachuang Shenghui to confirm configurations and availability.
Product overview
F1000-CN-G35 is an H3C firewall. This page compiles the model, official family image and key manufacturer specifications for equipment selection. Images may depict the product family. The exact appearance, port layout and supported options can vary by configuration. Confirm hardware version, accessories, compatibility and deployment requirements with the full manufacturer reference. Contact Beijing Huachuang Shenghui Network Technology Co., Ltd. for equipment selection and configuration enquiries.
Key technical specifications
| Specification | Value |
|---|---|
| Interfaces | Original manufacturer specification: 1个Console接口（RJ45） 2个外置USB 2.0接口 6个千兆以太电口(含一个管理口和1个HA接口) 4个千兆以太光口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 扩展槽&扩展接口卡 | Original manufacturer specification: 2个扩展插槽 支持8电口(自带Bypass)、8千兆光口插卡、4万兆光口插卡Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 硬盘扩展插槽 | Original manufacturer specification: 2个硬盘扩展插槽，支持扩展2块硬盘，支持480G/1T/1.92T三种存储硬盘Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 关键性能指标 | Original manufacturer specification: 网络层性能 : 6Gbps IPSec吞吐率（AES、3DES算法）: 1.2Gbps IPSec吞吐率（国密算法）: 500MbpsSome manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Memory配置 | 4G |
| Manufacturer specification / Flash配置 | 8G |
| Power supply | Original manufacturer specification: 外置2个电源扩展插槽，支持交流和直流，交流和直流不能混插Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Dimensions （W ×H ×D） | 440mm×44mm×435mm |
| Ambient temperature | Original manufacturer specification: 工作：无硬盘0～45℃，带硬盘5～40℃ 非工作：-40～70℃Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Ambient humidity | Operating: 10–80%, non-condensing Non-operating: 5–90%, non-condensing |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
