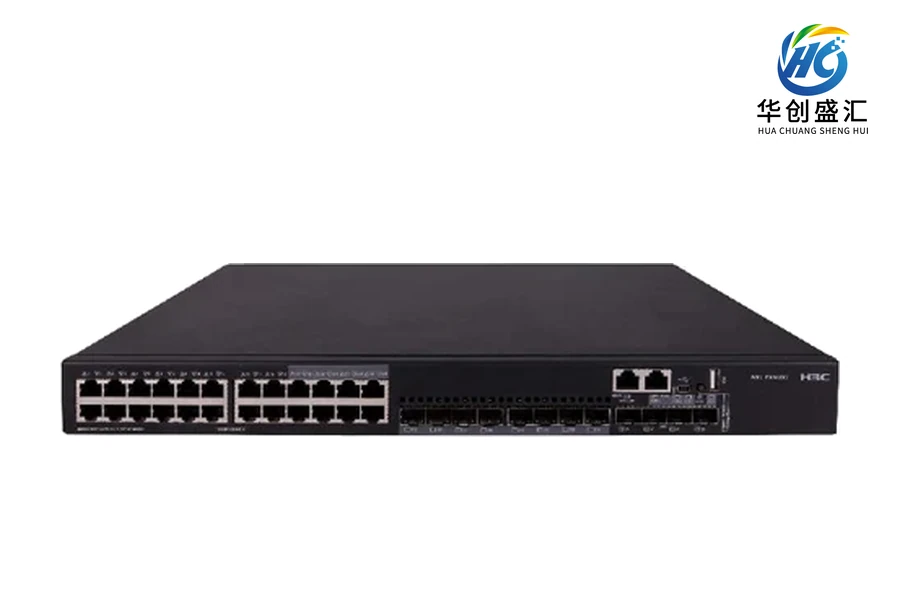

Official manufacturer family image; appearance may vary by model.
H3C ES5530C Switch
Product family：H3C ES5500
H3C ES5530C switch. Explore manufacturer-sourced specifications and contact Huachuang Shenghui to confirm configurations and availability.
Product overview
ES5530C is an H3C switch. This page compiles the model, official family image and key manufacturer specifications for equipment selection. Images may depict the product family. The exact appearance, port layout and supported options can vary by configuration. Confirm hardware version, accessories, compatibility and deployment requirements with the full manufacturer reference. Contact Beijing Huachuang Shenghui Network Technology Co., Ltd. for equipment selection and configuration enquiries.
Key technical specifications
| Specification | Value |
|---|---|
| Switching capacity | 736Gbps/7.36Tbps |
| Packet forwarding rate | 222Mpps/396Mpps |
| Dimensions （宽×深×高）（单位：mm） | 440×360×43.6 |
| Weight | ≤6.7kg |
| Management网口 | 1 |
| Management串口 | Original manufacturer specification: 1个RJ-45 Console口，1个Micro USB Console口（不能同时工作，Micro USB优先）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / 前面板业务端口描述 | Original manufacturer specification: 24个10/100/1000Base-T自适应以太网端口（其中8个是combo口），4个万兆SFP+口Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Expansion slots | 1 x |
| Manufacturer specification / 扩展板卡 | Original manufacturer specification: 2端口40GE QSFP+接口板卡Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Ports特性 | Original manufacturer specification: 支持IEEE802.3x 流量控制（全双工）Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Jumbo Frame | Original manufacturer specification: 支持最大帧长为10000Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
| Manufacturer specification / MAC地址表 | Original manufacturer specification: 支持黑洞MAC地址Some manufacturer terms are retained in Chinese; refer to the Chinese view and original source. |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
