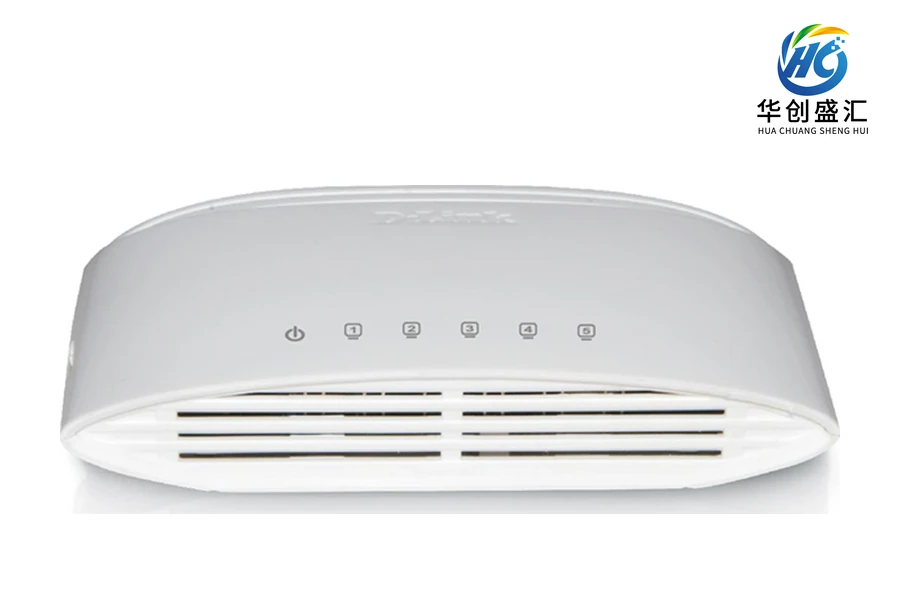

Official manufacturer family image; appearance may vary by model.
友讯 D-Link / Switches
D-Link DES-1005C Switch
Model：DES-1005C
Product family：DES-1005 Series
DES-1005C switch for network planning around port configuration and management requirements.
Product overview
DES-1005C belongs to the D-Link DES-1005 Series. Select deployment options according to port types, management and power requirements. Specifications are compiled from D-Link China official product information. A family image may represent related models; confirm model-specific configuration, family features and the order list before purchase.
Key technical specifications
| Specification | Value |
|---|---|
| Network ports | 5 10/100Mbps RJ-45 copper ports |
| Switching capacity | 1Gbps |
| MAC address table | 2K |
| Dimensions | 104 x 57 x 27mm |
| Power input | 5V/0.55A DC, external power adapter |
| Maximum power consumption | 1W |
| Temperature | operating : 0 - 40 °C; storage : -40 - 70 °C |
| Humidity | operating : 10% - 90% non-condensing ; storage : 5% - 90% non-condensing |
| Port configuration | 5 10/100Mbps copper ports, plastic housing desktop wall mountable, unmanaged switch |
| Cooling design | Fanless |
| Network port count | 5 |
| Management | Unmanaged |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
