厂家系列官方图片，具体型号外观以实物为准。
戴尔 DELL / 服务器

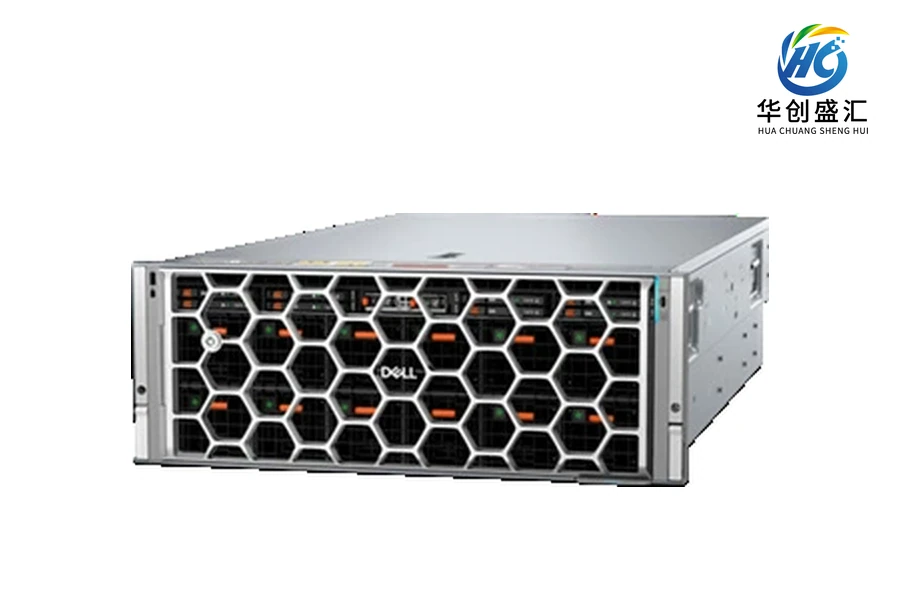

PowerEdge XE7740 服务器
产品型号：PowerEdge XE7740
所属系列：Dell PowerEdge
戴尔 PowerEdge XE7740 服务器，可按业务需求确认处理器、内存与扩展配置。
产品介绍
PowerEdge XE7740 是戴尔 PowerEdge 服务器产品。本页根据该型号官方规格书整理硬件选型信息，参数表示支持能力或可选配置，并非现货机器的固定配置。设备图来自该型号官方规格书。请联系我们确认具体配置、交付与供货。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| 处理器 | Two Intel® Xeon® 6 series processors with up to 86 cores per processor |
| 内存 | • 32 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6400 MT/s • Supports unregistered ECC DDR5 DIMMs only Note: Future releases will support 128GB DIMMs, increasing the maximum capacity to 4TB |
| GPU选项 | • 8x PCIe Gen 5 x16 DW-FHFL up to 600W or • 16x PCIe Gen 5 x16 SW-FHFL up to 75W |
| 存储控制器 | Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs |
| 电源 | 3200W Titanium 200-240 V AC or 240 V DC, hot swap redundant Multi capacity for 3200W PSU:3200W for 220.1-240 V AC or 2900W for 200-220 V AC |
| 冷却选项 | Air cooling |
| 风扇 | • Up to four sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray • Up to twelve high performance (HPR) platinum grade fans installed on the front of the system • All are hot swap fans |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
