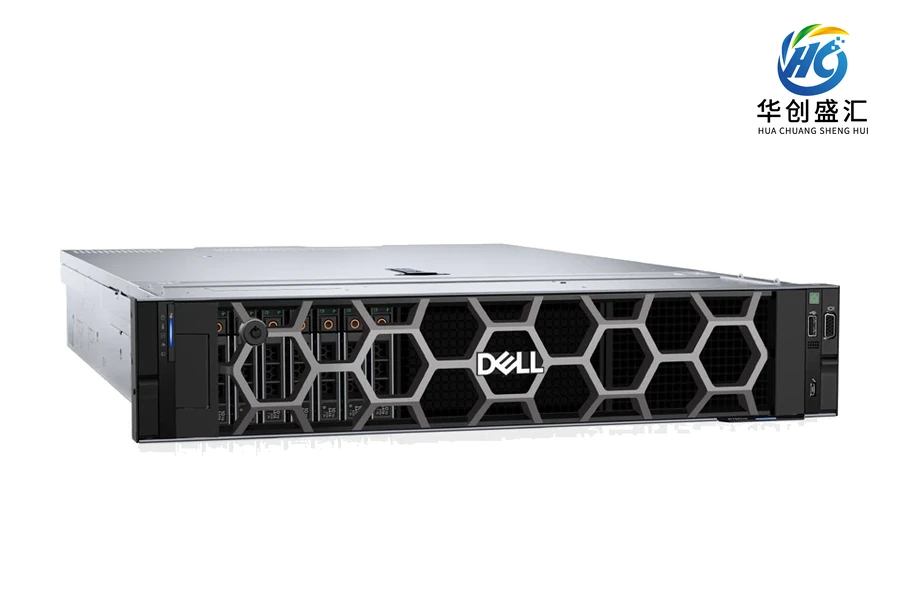

Official manufacturer family image; appearance may vary by model.
戴尔 DELL / Servers
PowerEdge R760xs server
Model：PowerEdge R760xs
Product family：Dell PowerEdge
Dell PowerEdge R760xs server. Select processor, memory and expansion options for your workloads.
Product overview
PowerEdge R760xs is a Dell PowerEdge server. Hardware selection information is summarized from its official specification sheet. Specifications describe supported capabilities or options rather than a fixed supplied configuration. The product image comes from this model’s official specification sheet. Contact us to confirm configurations, delivery and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Processor | Up to two 5th Generation Intel Xeon Scalable processor with up to 28 cores and 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor |
| Memory | • 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s, supports registered ECC DDR5 DIMMs only |
| Storage controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e; Software RAID: S160 |
| Cooling Options | • Air cooling |
| Fans | • Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans |
| Dimensions and Weight | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 707.78 mm (27.85 inches) – without bezel 721.62 mm (28.4 inches) – with bezel • Weight – Max 28.6 kg (63.0 lbs.) |
| Form Factor | 2U rack server |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
