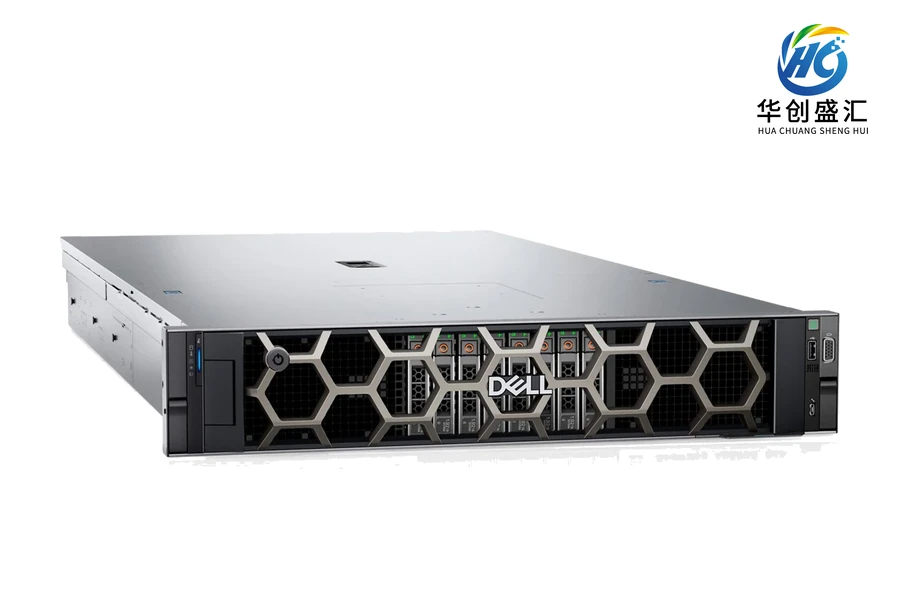

Official manufacturer family image; appearance may vary by model.
戴尔 DELL / Servers
PowerEdge R760xa server
Model：PowerEdge R760xa
Product family：Dell PowerEdge
Dell PowerEdge R760xa server. Select processor, memory and expansion options for your workloads.
Product overview
PowerEdge R760xa is a Dell PowerEdge server. Hardware selection information is summarized from its official specification sheet. Specifications describe supported capabilities or options rather than a fixed supplied configuration. The product image comes from this model’s official specification sheet. Contact us to confirm configurations, delivery and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Processor | Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist Technology |
| Memory | • 32 DDR5 DIMM slot, supports RDIMM 8 TB max • Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor • Speeds up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor • Supports registered ECC DDR5 DIMMs only |
| Storage controllers | • Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs, or USB • External HBA (non-RAID): HBA355e, HBA465e, H965e • Software RAID: S160 |
| Power Supplies | • 3200 W Titanium 277–305 VAC or 336 HVDC, hot swap redundant • 2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant |
| Fans | • Standard (STD) fan • Up to six hot plug fans |
| Form Factor | 2U rack server |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
