Official manufacturer family image; appearance may vary by model.
戴尔 DELL / Servers

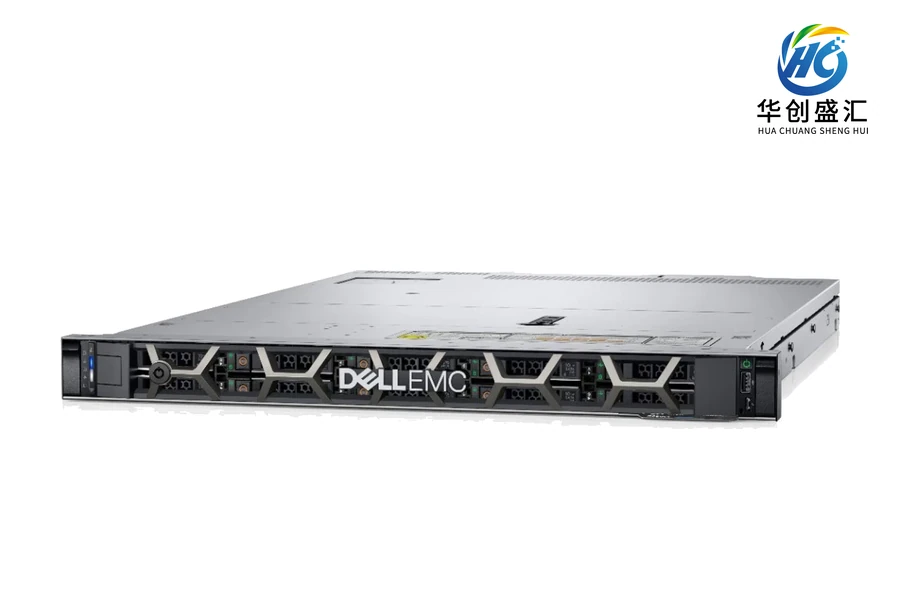

PowerEdge R650xs server
Model：PowerEdge R650xs
Product family：Dell PowerEdge
Dell PowerEdge R650xs server. Select processor, memory and expansion options for your workloads.
Product overview
PowerEdge R650xs is a Dell PowerEdge server. Hardware selection information is summarized from its official specification sheet. Specifications describe supported capabilities or options rather than a fixed supplied configuration. The product image comes from this model’s official specification sheet. Contact us to confirm configurations, delivery and availability.
Key technical specifications
| Specification | Value |
|---|---|
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
| Memory | • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only |
| Storage controllers | • Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150 • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB • External PERC (RAID): PERC H840, HBA355e |
| Power Supplies | • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input) |
| Fans | • Standard (STD) fans, High performance SLVR fans or High performance GOLD fans • Up to seven cabled fans |
| Form Factor | 1U rack server |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
