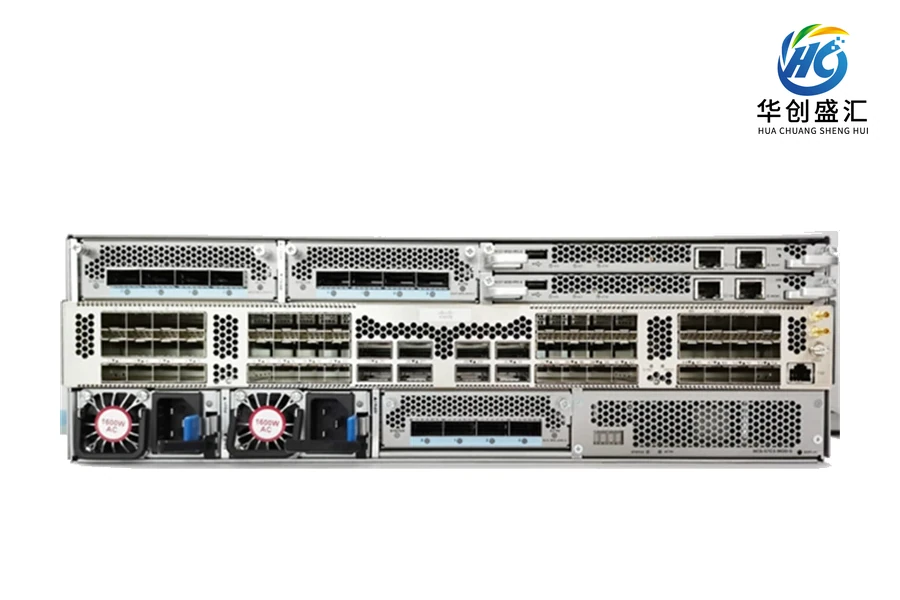

厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 路由器
Cisco NCS-57C3-MOD-SYS 路由器
产品型号：NCS-57C3-MOD-SYS
所属系列：Cisco Network Convergence System 5700 Series: NCS-57C3 Chassis Data Sheet
Cisco NCS-57C3-MOD-SYS 路由器，提供官方型号参数与选型咨询。
产品介绍
本页按 Cisco 官方资料中明确列示的 NCS-57C3-MOD-SYS 型号整理技术参数。性能测试条件与可选配置以原始资料为准。图片为该产品系列官方展示图，请联系我们确认端口、授权、安装与供货配置。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| Power consumption | Ultra-low power per Gigabit Ethernet |
| Port configuration | Base chassis: Fixed - 48 port 1/10/25G and 8 port 100G Modular Port Adapters (MPAs) - Maximum 3 units of MPA (Slot 1 – 400G, Slot 2 and Slot 3 – 800G) Scale chassis: Fixed - 48 port 1/10/25G and 4 port 100G Modular Port Adapters (MPAs) - Maximum 3 units of MPA (Slot 1 – 400G, Slot 2 and Slot 3 – 800G) |
| Power and cooling | 2 hot-swappable power supplies provide 1 + 1 redundancy Front-to-back airflow 6 hot-swappable fan trays provide 5 + 1 redundant system cooling |
| Operating humidity | Normal: 5% RH to 85% RH Short term: 5% to 95% RH Should not exceed 0.026 kg water/kg of dry air |
| Storage (relative) humidity | 5% to 95% at 40C per NEBS GR-63-Core |
| Power inputs | Worldwide ranging AC: 90-240V; 50-60 Hz Worldwide ranging DC: -40V to -72V; Power ON at -45V |
| Weight | Table 2. Cisco NCS 57C3 chassis specification |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
