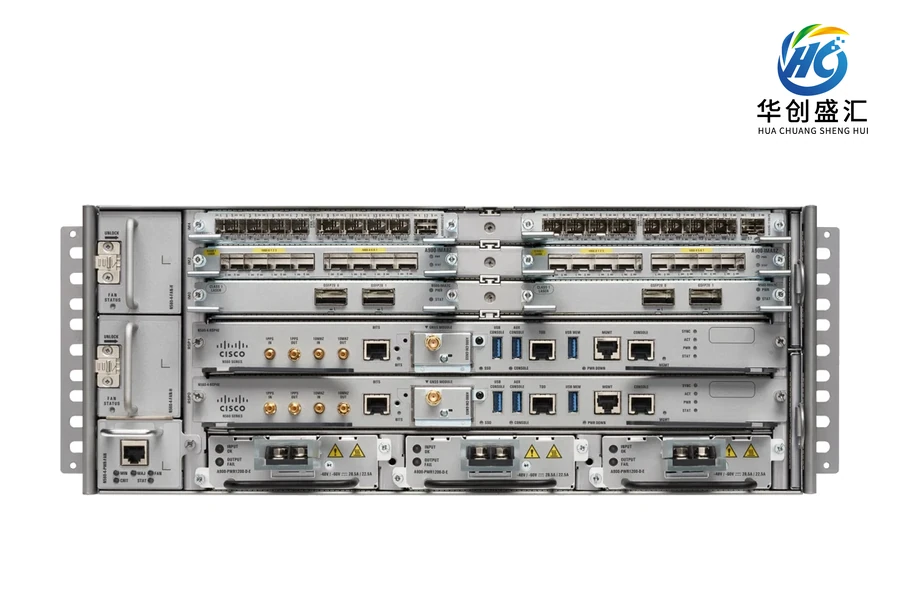

Official manufacturer family image; appearance may vary by model.
思科 Cisco / Routers
Cisco N560-4-SYS-E router
Model：N560-4-SYS-E
Product family：Cisco NCS 560 Series
N560-4-SYS-E router with official model-specific technical specifications.
Product overview
Prepared from the corresponding model column or explicitly stated chassis specifications in the official Cisco data sheet. Retain the original power, temperature and performance conditions. The image is an official device or family illustration. Contact us to confirm interface modules, licensing, power supplies and supply configuration.
Key technical specifications
| Specification | Value |
|---|---|
| Official system description | NCS 560-4 4RU System ATO, 800G, XL scale, Redundant RSP |
| Chassis height | 4 RU / 177.88 mm |
| Width | 443 mm |
| Depth | 243.1 mm |
| Empty chassis weight | 8.12 kg |
| Maximum input power | 975 W at 65°C, including loss |
| AC voltage | 85–264 VAC; nominal 115–230 VAC |
| AC frequency | 47–63 Hz; nominal 50–60 Hz |
Specifications are compiled from manufacturer references. Confirm the full specification, hardware version, configuration, availability and compatibility before ordering.
