思科 Cisco / 路由器

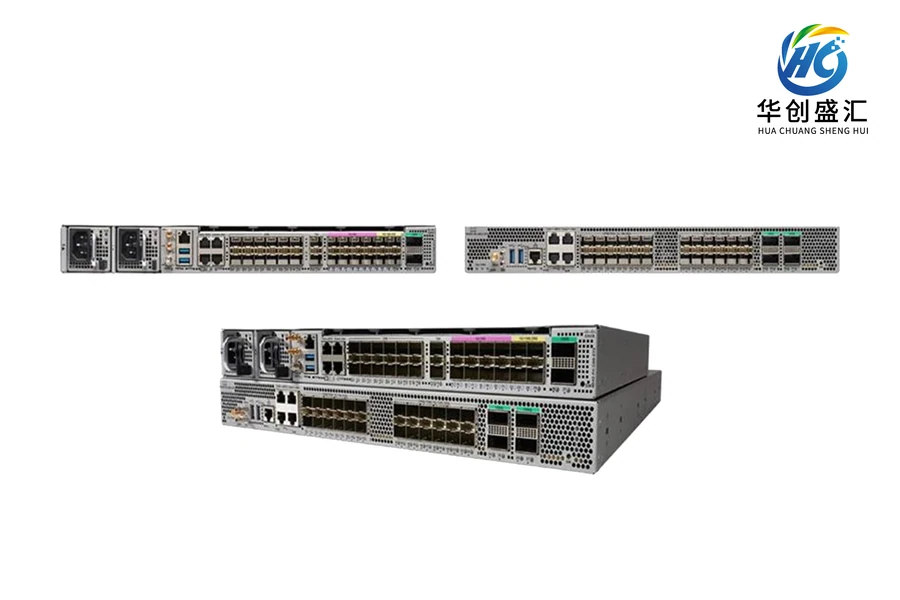

Cisco N540-FH-CSR-SYS 路由器
产品型号：N540-FH-CSR-SYS
所属系列：Cisco NCS 540 Series
N540-FH-CSR-SYS 路由器，按官方具体型号参数提供选型咨询。
产品介绍
依据Cisco官方数据表对应型号列或明确机框规格整理。参数中的供电、温度和性能条件以原始资料为准。图片为官方设备或系列图，具体接口板、授权、电源和供货配置请联系我们确认。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| CPU | Memory Storage | 8-core 1.7Ghz x86 CPU | 8GB DRAM 32GB storage |
| Interfaces | 8xCPRI Option 3-8 | + | * | 4x1/10G/CPRI 3-8 | + 8x1/10G | + 4x1/10/25G | + 2x10/25G (802.1Qbu) | + 2x100G | * | Universal Port = Port can be used for CPRI, eCPRI, Ethernet (1/10GE) |
| Throughput | Up to 300 Gbps |
| Power Supplies Fans Airflow | 2 hot-swappable AC/DC power supplies provide 1+1 redundancy | 6 fans provide 5+1 redundant system cooling Front-to-back airflow |
| Temperature Range | I-Temp: -40°C to+65°C at 1,000ft | +60°C at 6,000ft | +50°C at 13,000ft |
| Surge Rating | As per IEC 61000-4-5 | AC: 1kV DM, 2kV CM | DC: 1kV DM, 1kV CM |
| Timing | SyncE, PTP | Internal GNSS receiver SW | * | Interfaces: 1pps, 10MHz, ToD, antenna for GNSS | Class C |
| Physical Specification | 1RU | Depth: 38.1cm | 1.72 in. x 17.5 in. x 15 in (H x W x L) | Weight: 7.55 kg |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
