厂家系列官方图片，具体型号外观以实物为准。
思科 Cisco / 路由器

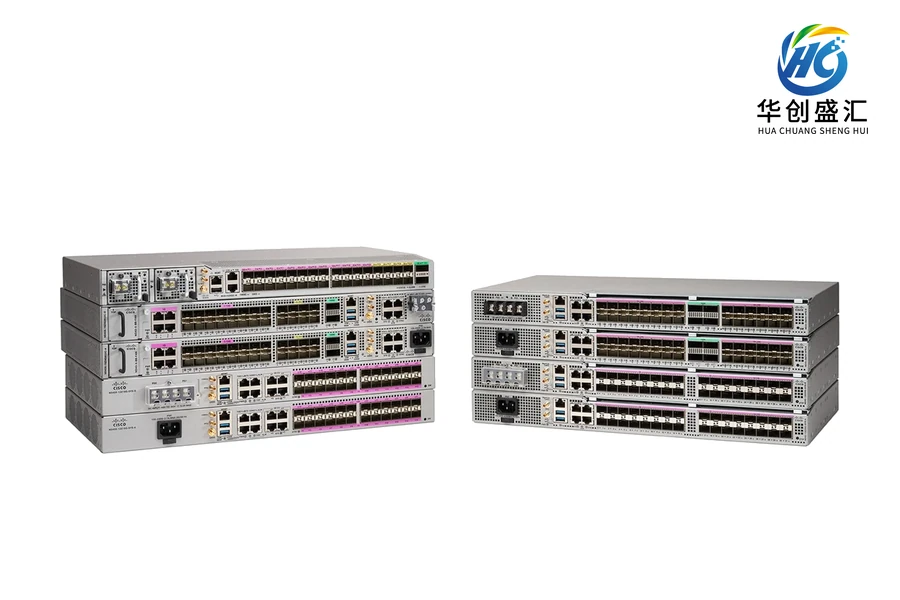

Cisco N540-24Z8Q2C-M 路由器
产品型号：N540-24Z8Q2C-M
所属系列：Cisco NCS 540 Series
N540-24Z8Q2C-M 路由器，按官方具体型号参数提供选型咨询。
产品介绍
依据Cisco官方数据表对应型号列或明确机框规格整理。参数中的供电、温度和性能条件以原始资料为准。图片为官方设备或系列图，具体接口板、授权、电源和供货配置请联系我们确认。
主要技术参数
| 参数项目 | 参数值 |
|---|---|
| CPU | Memory | Storage | 4-core 1.5Ghz x86 CPU | 32GB DRAM | 128GB storage |
| Interfaces | 24x 1GE/10GE | 8x 1GE/10GE/25GE | 2x 40GE/100GE |
| Performance | Up to 300 Mpps |
| Power Supplies | Fans | Airflow | 2 hot-swappable AC/DC power supplies provide 1+1 redundancy | 4 modular fans provide 3+1 redundant system cooling | Front-to-back airflow |
| Temperature Range | I-Temp: -40°C to | +70°C at 1,000ft | +65°C at 6,000ft | +55°C at 13,000ft |
| Surge Rating | As per IEC 61000-4-5 | AC: 1kV DM, 2kV CM | DC: 1kV DM, 1kV CM |
| Timing | SyncE, PTP | Internal GNSS receiver | Interfaces: 1pps, 10MHz, ToD, antenna for GNSS | Class B |
| Physical Specification | 1RU | Depth: 26 cm | 1.72 in. x 17.3 in. x 10.1 in. | Weight: 5.9 kg |
| NEBS GR-63-CORE and GR-1089-CORE | Compliant |
| NEBS GR-3108 | Designed to meet Class III when installed in sealed cabinets |
参数整理自厂家资料。选型时请结合完整规格、硬件版本与实际配置核对，具体供货及适配以咨询确认为准。
